1E (06B-1) - 25 × 10 mm (PE-1000, L = 2000 mm)
Chain Guide
Price without VAT: 19.30€
Price including VAT: 23.35€ with VAT
Catalogue price excluding VAT:
19.69€
At supplier, we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Chain Guide Parameters
Standard length.

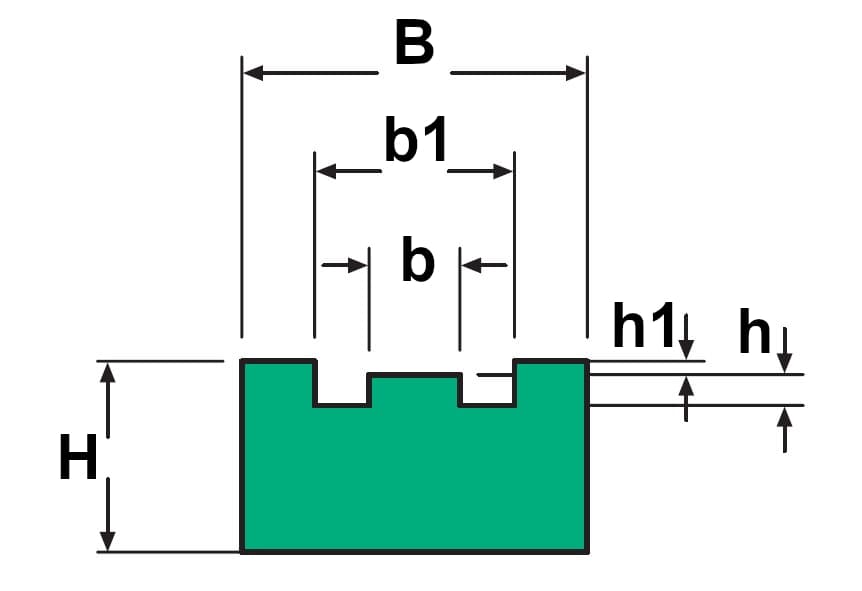

Dimensions of the cross-sectional profile. B represents the width, and H represents the height.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PE-1000.
Chain Guide Description

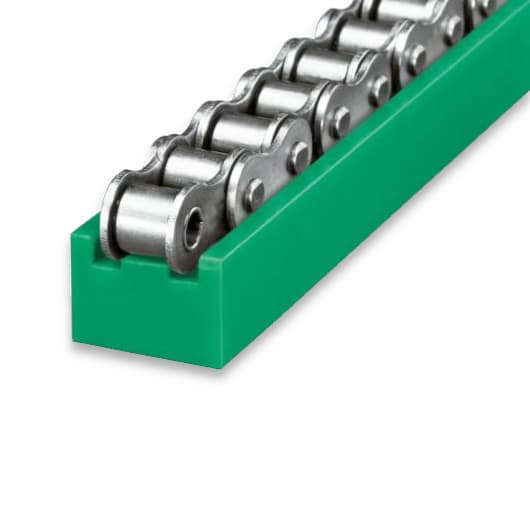

1E (06B-1) - 25 × 10 mm (PE-1000, L = 2000 mm) are standard 1E type sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.
Chain sliding guides are made of special highly resistant plastic.
Chain Guide Construction
- Open chain guide
- Single-row roller chain
Chain Guide Fields of Use
Sliding chain guides are used in many industries.
They are commonly found in the food, woodworking, glass, and ceramic industries, as well as on all types of conveyors, in distribution centers, and on packaging machines.
Chain Guide Characteristics
- High wear resistance
- Excellent sliding properties, without the need for lubrication
- High chemical and temperature resistance
- Vibration damping
- No need for maintenance, no corrosion
- Temperature resistance up to +80 °C
- Possibility of use in the food industry
Chain Guide Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMWUltra High Molecular Weight) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of 1E Sliding Chain Guides
TYMA CZ Data Sheets
Czech and English (PDF 146.33 kB)
