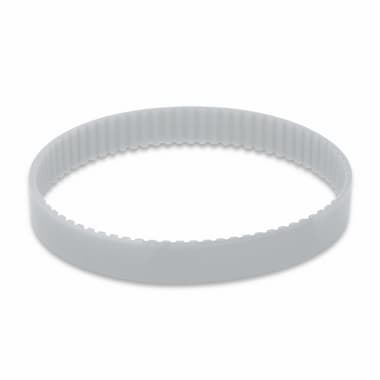

6 AT5 - 275

Timing Belt

Price for you :

Price without VAT: 4.31

Price including VAT: 5.21 with VAT

Catalogue price excluding VAT:
4.38

The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.

At supplier, on request Estimated time of shipping will will be announced after receiving information from our suppliers. Please, write down required amount and send a Question about the Product or just order the belt. The shipping conditions will be sent on your e-mail address. After your confirmation the goods will be ordered from the supplier.

Belt Parameters

Profile: AT5 Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): z=55 Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.005
Length Ld (mm): 275,00
Width (mm): 6,00
Material: Polyurethane Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU.

Belt Description

6 AT5 - 275 is reinforced polyurethane endless timing belt with trapezoidal teeth intended for high performance.

The excellent bond between the hard-wearing polyurethane teeth and the constant-length galvanised steel tension members is the basic on which the high power output potential is built. The range of polyurethane compounds available also enables operation at low temperatures, in clean rooms and in the food industry.

Belt Construction

CONTI SYNCHROFLEX Belt Structure

  1. Polyurethane teeth
  2. Steel cord tension member
  3. Polyurethane backing

Belt Fields of Use

The polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms, small hand machines to high-performance drives in construction and woodworking machinery.

Belt Characteristics

  • High transmission power and long life
  • Temperature range from −30 °C do +80 °C
  • Resistant to oils, grease and fuel
  • Wear-resistant
  • Low-noise
  • High flexibility
  • Suitable for reverse flexing
  • Maintenance-free

Documents for Download

Dimensions and Parameters of CONTI SYNCHROFLEX AT5 Timing Belts - Preview

Dimensions and Parameters of CONTI SYNCHROFLEX AT5 Timing Belts

TYMA CZ Data Sheets

Czech and English (PDF 295.05 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)

Endless Timing Belts - Preview

Endless Timing Belts

ContiTech Catalogue

English and German (PDF 8.98 MB)

CONTI SYNCHROFLEX - Preview

CONTI SYNCHROFLEX

ContiTech Catalogue

English and German (PDF 2.72 MB)

CONTI SYNCHROFLEX Special Production Price List - Preview

CONTI SYNCHROFLEX Special Production Price List

TYMA CZ Product Overview

Czech and English (PDF 521.38 kB)
