AT5-25 for Timing Belt (44 × 41.8 mm)
Clamping Plate
Price without VAT: 4.93€
Price including VAT: 5.96€ with VAT
Catalogue price excluding VAT:
5.00€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Specifications
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation AL.
Clamping Plate Description

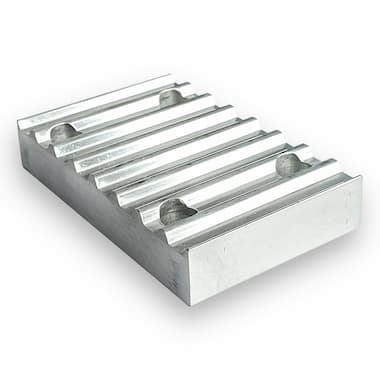

AT5-25 for Timing Belt (44 × 41.8 mm) is a fixing plate used to mechanically fasten a linear open-ended timing belt in AT5 profile to the base of the machine. It is made of aluminium alloy.
Caution
For standard applications a minimum of 7 teeth in clamp is recommended. For use with timing belts with special cords (e.g. HPL), a minimum of 12 teeth in clamp is recommended.
Typical Applications
They are used in all types of linear and lifting applications.
Materials
Aluminium alloy.
| Parameter | Standard |
|---|---|
| Surface roughness | ISO 254 |
Documents for Download
Dimensions and Parameters of Timing Belts Clamping Plates
TYMA CZ Data Sheets
Czech and English (PDF 222.91 kB)
Questions about This Product?
Don’t hesitate to contact us – our specialists will be happy to help with any questions about this clamping plate.
