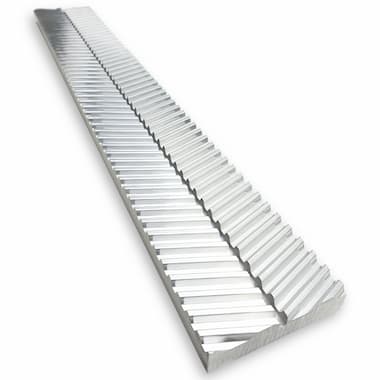

EAGLE 8M-25 for Timing Belt (Semi-Finished, 50 × 730 mm)
Clamping Plate
Price without VAT: 107.73€
Price including VAT: 130.35€ with VAT
Catalogue price excluding VAT:
109.92€
At supplier, we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Specifications
In the TYMA Product Catalogues you can find this material also described with the abbreviation AL.
Clamping Plate Description
EAGLE 8M-25 for Timing Belt (Semi-Finished, 50 × 730 mm) is a fixing plate used to mechanically fasten a linear open-ended timing belt in EAGLE 8M profile to the base of the machine. It is made of aluminium alloy.
Caution
For standard applications a minimum of 7 teeth in clamp is recommended. For use with timing belts with special cords (e.g. HPL), a minimum of 12 teeth in clamp is recommended.
Typical Applications
They are used in all types of linear and lifting applications.
Materials
Aluminium alloy.
| Parameter | Standard |
|---|---|
| Surface roughness | ISO 254 |
Documents for Download
Dimensions and Parameters of EAGLE Timing Belts Clamping Plates
TYMA CZ Data Sheets
Czech and English (PDF 377.17 kB)
