F33 DP 33-8x2.0 CONTI POLYROPE - 40 kN (EN 81-50)

Flat Elevator Rope

Price on Request The rope price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form. The price and delivery conditions will be answered by email.

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Rope Parameters

Profile: POLYROPE Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): - Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: ContiTech
Weight (kg): 0.270
Length Ld (mm): 1000,00
Width (mm): 33,00
Material: Polyurethane with Steel Tensile Fiber Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ST.

Rope Description

CONTI POLYROPE belts are open-ended polyurethane flat belts. They consist of steel tension member embedded in thermoplastic polyurethane.

Flat Elevator Belts as an Alternative to Steel Ropes

The belts are certified for use as a suspension device for installation in electrically or hydraulically powered passenger or freight elevators according to the EN 81-20:2020 and EN 81-50:2020 Standard and the Lift Directive 2014/33/EU.

The belts have very high tensile strenght, excellent flexibility and wear resistance. They are available in various widths, in whole rolls or in lengths according to customer requirements.

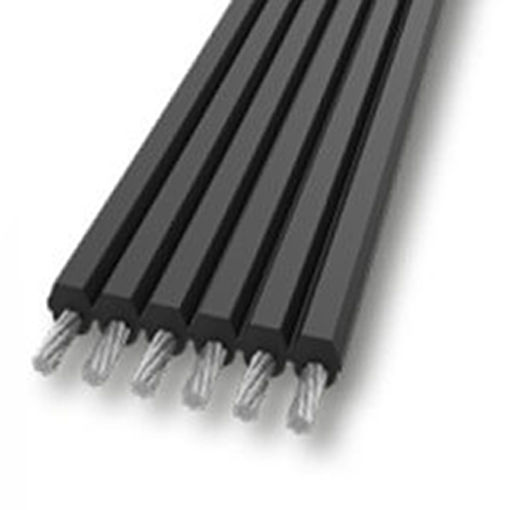

Rope Construction

CONTI POLYROPE Elevator Flat Rope Structure

  1. Polyurethane pulley side
  2. Steel cord tension member
  3. Polyurethane backing

The F33 DP 33-8x2.0 CONTI POLYROPE - 40 kN (EN 81-50) consists of 2.0 mm thick steel ropes, which are embedded in a black polyurethane coating.

The test results have shown that its service life is three times longer than the service life of current steel ropes under the same conditions.

Long-term strength shows only a slight decrease after several millions of cycles. The traction test for the cycle value confirms the high wear resistance of the entire system.

Material and Construction Innovations

The horizontal alignment of the steel cords gives the belt its flat shape. Each PU belt contains more steel wires than a conventional steel cable.

Thanks to its greater flexibility and traction the F33 DP 33-8x2.0 CONTI POLYROPE - 40 kN (EN 81-50) enables compact drives with much smaller pulley diameters in comparison to conventional drives with steel cords.

Significantly smaller pulleys make it possible to use smaller gear motors and create space-saving drives with low inertial masses. This reduces production costs and energy consumption.

Rope Fields of Use

CONTI POLYROPE flat elevator belts are used in elevators and lifting systems. They are certified for use as a suspension device for installation in passenger elevators according to the EN 81-20/50 Standard and the Lift Directive 2014/33/EC.

They serve as an alternative to steel ropes in passenger and freight elevators.

Documents for Download

Dimensions and Parameters of CONTI POLYROPE Flat Ropes and Wedge Sockets - Preview

Dimensions and Parameters of CONTI POLYROPE Flat Ropes and Wedge Sockets

TYMA CZ Data Sheets

Czech and English (PDF 222.32 kB)

Power Transmission Group - Competence in Elevator Applications - Preview

Power Transmission Group - Competence in Elevator Applications

ContiTech Product Overview

Czech and English (PDF 1.02 MB)

CONTI POLYROPE - Preview

CONTI POLYROPE

TYMA CZ User Guide

English (PDF 1.67 MB)

CONTI POLYROPE - Preview

CONTI POLYROPE

Certificate

English (PDF 1.22 MB)
