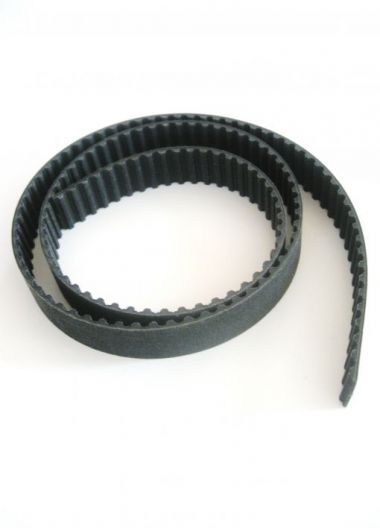

L 100 (Neoprene, Glass Cord)
Open-Ended Timing Belt
Belt Parameters
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NEO+GLAS.
Belt Description
L 100 (Neoprene, Glass Cord) is a neoprene open-ended belts have been developed for use in automatic door opening systems.
Their excellent length stability ensures high operational reliability and a long maintenance-free service life. As lifetime products they are very hardwearing and their matched materials ensure they run smoothly in continuous operations. Construction, layout and assembly are very simple.
Belt Construction
- Polyamide fabric
- Synthetic rubber teeth
- Glass cord tension member
- Synthetic rubber backing
Belt Fields of Use
The inch sizes neoprene timing belts are mainly used in automatic door opening systems, lift doors and garage doors.
Belt Characteristics
- High transmitted power and long service life
- Conditionally resistant to oil
- Suitable for tropical climates
- Temperature range, depending on application, from −20 °C to +100 °C
Documents for Download
Dimensions and Parameters of CONTI SYNCHROLINE Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 200.91 kB)
