SIT SERVOMATE Disc Couplings
SIT SERVOMATE are all-metal, torsionally rigid disc couplings with backlash-free torque transmission, designed specifically for servomotor drives where maximum positioning accuracy is required. They transmit torque through a highly durable disc pack fitted between the hubs. They can operate in two configurations – in a single version with one disc pack, without the ability to compensate for radial misalignment, or in a double version with two disc packs and a spacer ring, which compensates for radial misalignment at the cost of a longer design, higher moment of inertia and half the torsional stiffness.
SERVOMATE couplings can be used in both directions of rotation and in any mounting position.
GSMM (Pilot Bore Hubs)
GSMC (Double Shaft Spacers)
Shaft Coupling Construction
- GSMM hubs with a pilot bore and a hole for a radial clamping screw
- GSMPL disc packs
- GSMC spacer
Typical Applications
SIT SERVOMATE disc couplings are designed specifically for drives controlled by servo motors, where in addition to torque transmission, maximum positioning accuracy and zero backlash are required.

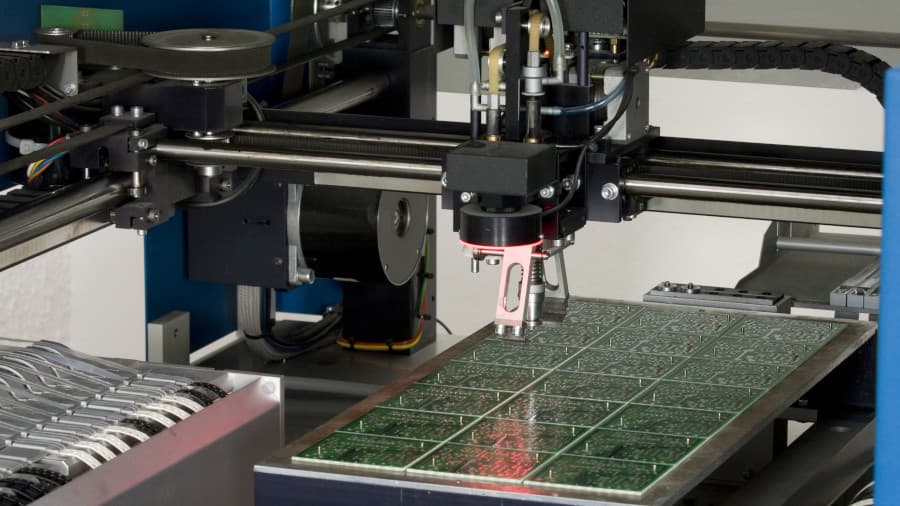

They are used, for example, on the axes of CNC metalworking and woodworking machines, in robotics and manipulators, on packaging and printing machines, in instrumentation, measurement and automation technology, and on laser and cutting machines, as well as in other precision automated drives with closed-loop position control. They are also used in the food, chemical, paper, metalworking, and automotive industries.
Documents for Download
Related Products
SIT SERVOPLUS Bellows Couplings
All-metal, torsionally rigid, zero-backlash bellows couplings with clamping hubs and a stainless steel bellows element
SIT METALDRIVE Disc Couplings
Torsionally stiff disc couplings with steel construction and stainless steel disc packs
We also provide design and calculation of transmission components, including shaft couplings. In the case of your interest in this service, use the detailed Drive or Coupling Calculation Form.
