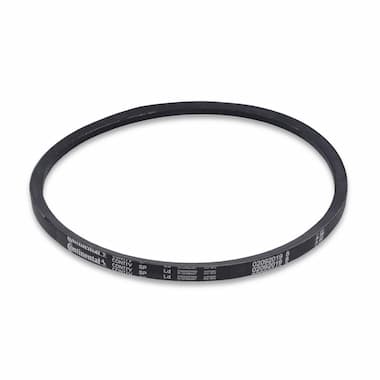

SPA 1150 Ld CONTI V
V-Belt
Low electrical conductivity – for compliance with requirements to ISO 1813.
Price without VAT: 9.70€
Price including VAT: 11.73€ with VAT
Catalogue price excluding VAT:
9.88€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Specifications
Nominal length, datum length or working length of the belt. It is commonly denoted as Ld or Ld, and sometimes also as Lw or Lw.
Outside length of the belt. It is commonly denoted as La or La.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NR/SBR.
Belt Description
SPA 1150 Ld CONTI V is a narrow V-belt for the transmission of increased power and revolutions in SPA profile wrapped according to ISO 4184 (DIN 7753).
The belts are made of highly durable rubber compound and a special tension member. They are characterized by long service life, high efficiency, high temperature and chemical resistance.
Construction
- Fabric jacket
- Natural rubber
- Polyester tension member
Typical Applications
The CONTI V narrow V-belts of the SPA profile meet the strongest requiremets of modern drive technology and are used in all areas of mechanical engineering, from fine mechanics to heavy engineering.
Typical application fields include compressors, fans, crushers, paper and chemical industries, mining and many other areas.
Properties
- High power transmission (up to 50 % more than conventional V-belts)
- L = L design – constant tolerance of belts in the set, minimum elongation
- Use with standardised SPA pulleys
- Temperature resistant from −55 °C to +70 °C
- Antistatic according to ISO 1813
- High durability, low maintenance costs
Certificates
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
Documents for Download
Dimensions and Parameters of CONTI-V SPA V-Belts
TYMA CZ Data Sheets
Czech and English (PDF 311.64 kB)
Rubber Products Optional Services Price List
TYMA CZ Product Overview
Czech and English (PDF 500.38 kB)
