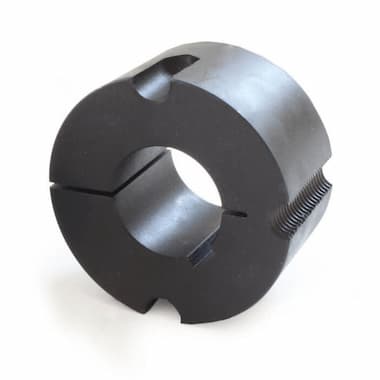

TB 1008-24 - Reduced Keyway (h = 1.3 mm)
Taper Lock Bush
Price without VAT: 7.03€
Price including VAT: 8.51€ with VAT
Catalogue price excluding VAT:
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
TB 1008-24 - Reduced Keyway (h = 1.3 mm) Taper bushes are standard conical bushes used as a locking mechanism for fixing pulleys, wheels, shaft couplings and other components to drive shafts.
The bushes have a conical outer surface and a cylindrical inner bore with H7 tolerance including a standardized keyway. Once fixed, the component is capable of transmitting torque while being secured against axial displacement.
Bush Fields of Use
The TB 1008 Taper bushes are used in a variety of industrial applications.
They are used to fix standard and non-standard V-belt, timing and flat pulleys, sprockets, TB hubs, shaft couplings and other components.
Cast iron GG20.
Other materials to order.
The bushes have Whitworth threads and the dimensions of the housings are derived from the original inch dimensions.
