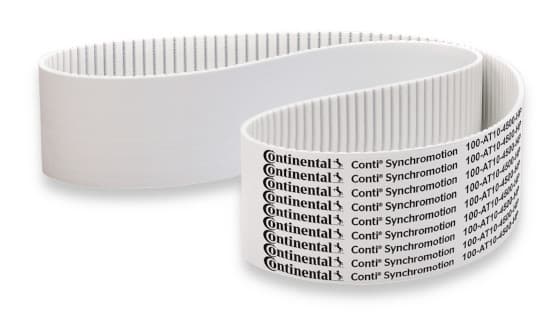

CONTI SYNCHROMOTION Polyurethane Truly Endless Timing Belts
CONTI SYNCHROMOTION endless drive or transport timing belts are made to order for reliable power transmission even in the most demanding environments.
The base of the belt is made of steel tensile fiber, in special cases aramid or stainless steel, which is without any connection (endless). The teeth and spine of the belt are made of thermoplastic polyurethane.
The belts are produced in eleven different profiles as a single unit without a joint with a maximum width of 100 mm in the length range 1.5 to 14.5 m (they can be manufactured in individual lengths precisely down to one tooth). Surface layers or carriers can be welded or glued to them.

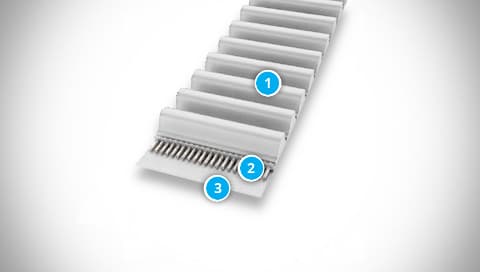

Belt Construction
- Polyurethane teeth
- Steel cord tension member
- Polyurethane backing
Typical Applications
CONTI SYNCHROMOTION endless polyurethane timing belts are used in all areas of industry as drive or transport belts, in linear drives, positioning and lifting devices.
They are most commonly used in the automotive, textile, glass, ceramic or woodworking industries, as well as in cable companies as drive or towing belts.
Properties
- High transmitted power and long service life
- The bifilar winding of the steel tension member optimizing positional accuracy
- Ground belt back for achieving high thickness precision
- Oil resistant according to DIN 53428
- Ozone resistant according to DIN ISO 1431
- Resistant against light exposure according to DIN EN ISO 4892
- Maintenance-free
- Temperature range, depending on application, from −30 °C to +80 °C
Belt Code Description
Example:
50 T10 - 8920 CONTI SYNCHROMOTION
| Code Part | Description |
|---|---|
| 50 |
Belt width in mm |
| T |
Profile |
| 10 |
Tooth pitch in mm |
| 8920 |
Belt length in mm |
| CONTI SYNCHROMOTION |
Type of belt |
Optional Belt Surface Layers
The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.
| Layer Name | Material | Layer Illustration |
|---|---|---|
| PAZ (NFT) - nylon fabric on teeth Low coefficient of friction |
Nylon |  |
| PAR (NFB) – nylon fabric on back Surface protection |
Nylon |  |
| PAZ + PAR (NFT + NFB) – fabric on teeth and back Low coefficient of friction and surface protection |
Nylon |  |
The fabric on teeth and back can be combined with all other layers. A complete range of belt surface layers
