BANFLEX Special V-Belts (PUR)
BANFLEX special wedge polyurethane V-belts with a wedge angle of 60° are intended for the transmission of high revolutions with smooth and quiet operation with very low vibration.
The belts are made of highly durable polyurethane and a special tension member. The diagonally grooved back of the belt optimizes its flexibility. We offer them in two variants: directly from the factory or cut from the sleeve.
3M
Lenth range La (mm): 180 - 750
5M
Length range La (mm): 280 - 1850
7M
Length range La (mm): 500 - 2300
BANFLEX Belts: Factory-Made vs. Sleeve-Cut
We offer BANFLEX polyurethane V-belts of 5M, 7M and 11M profile in two variants under the same designation, which differ due to different manufacturing processes. Therefore, they also have slightly different dimensions. If you use belts in a set, it is necessary for the entire set to be of the same type!
Ready-made endless belts directly from the factory (Factory-Made) have a construction specifically designed to be always used as single, individual belts, even if on a multiple pulley in a set
Another manufacturing option for these belts is cutting from a sleeve of a multiple belt (Sleeve-Cut). For construction reasons, multiple belts are slightly thicker than single ones, which also results in a different length of the cut endless belt. However, in terms of function and operational properties, they are the same as single belts from the factory.
Due to the variety of different dimensions and the above-mentioned possibility of manufacturing from a sleeve, we usually do not stock single belts. Therefore, their delivery takes longer. On the other hand, we keep sleeves in the usually requested sizes in stock. Sleeve-cut belts are then shipped no later than the next working day but are more expensive due to the labor cost (cutting).

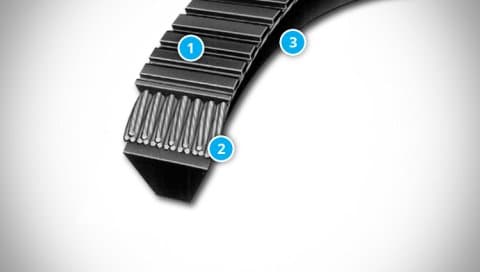

Belts Construction
- Ribbed top
- Polyester tension member
- Polyurethane
Belts Fields of Use
The PUR BANFLEX V-belts are used as drive belts especially for high-speed machines, for smooth running and high precision requirements, for example machine tools, woodworking machines and others.
Belts Characteristics
- High speed drives with a belt speed of up t 60 m/s
- High efficiency and durability, long service life
- Small pulleys diameter, small transmission dimensions, low vibration even at high speeds
- Temperature resistant from −30 °C to +60 °C
Belts Code Description
Example:
5M-1150 La BANFLEX (Factory-Made)
| Code Part | Description |
|---|---|
| 5M |
Profile |
| 1150 La |
Outside length in mm |
| BANFLEX |
Type of belt |
| Factory-Made |
Belt variant regarding the manufacturing process |
Caution
The BANFLEX (PUR) belts cannot be used with standard V-belt pulleys, only with special pulleys with an angle of 60°!
Documents for Download
Dimensions and Parameters of BANFLEX V-Belts
TYMA CZ Data Sheets
Czech and English (PDF 274.46 kB)
