Freewheels (One-Way Bearings)

Freewheels (also freewheel clutches, one-way bearings) are devices that transmit torque in only one direction. They rotate freely in the opposite direction and do not transmit any forces. The rotation in the desired direction is given by a special construction, where the freewheel elements change their position so that they engage and create a connection between the inner and outer ring, which rotates as one unit.

Depending on the type of freewheel elements, the freewheels can be roller, needle or with specially shaped freewheel segments for higher loads.

Freewheel in use

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Basic Range of Freewheels

  • Freewheels and one-way bearings
  • Blocking and leading freewheels
  • Sliding and switching freewheels
  • Separate freewheel elements, freewheel cages
  • Freewheels with needle bearings and special freewheels to order

Freewheels Construction

Freewheels Construction

  1. Inner ring
  2. Outer ring
  3. Freewheel
  4. Rolling bearing
  5. Seal

Freewheels Types Overview

Freewheel Type Description Illustration

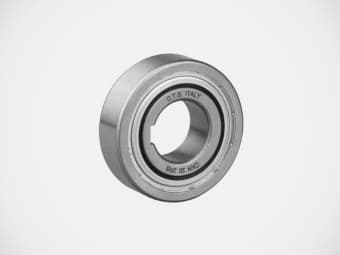

K, KN

K and KN freewheels with ball bearings are integrated into ball bearings with dimensions and characteristics of series 62. They are filled with grease for the entire service life and can be installed inside or outside the housings. They are manufactured in versions with coverage, with or without keyway K..-2RS, or KN..-2RS).

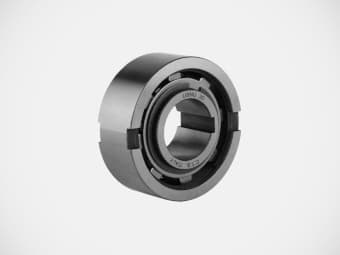

US, USNU, UF

US, USNU, UF freewheels are not self-centering. They are placed inside closed housings (gears, caps, etc.) next to existing bearings. The external and internal components must run perfectly centered and must not be axially loaded or pretensioned. The lubricant supply must be guaranteed.

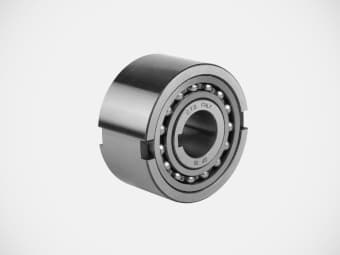

GF

GF freewheels are mounted in bearings: sizes 8–20 with plain bearings, sizes 25–60 with ball bearings. They are usually mounted inside closed housings. The lubricant supply must be guaranteed.

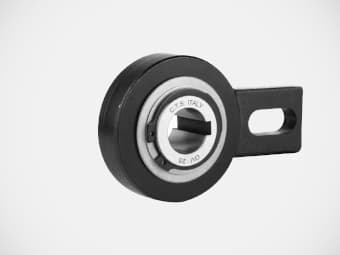

GV

GV freewheels are mounted in plain bearings filled with grease for the entire service life. They are installed as a backstop or as switching elements outside the input or output shafts, where the lever arm welded to the external components absorbs torque.

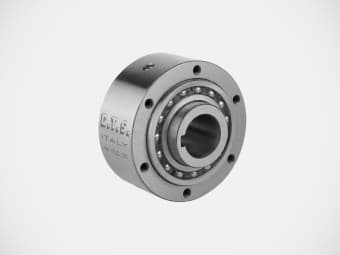

GL, GLP

GL and GLP freewheels are mounted in ball bearings. These freewheels, together with the wide range of flanges, covers and elastic couplings that can be supplied, provide complete units with their own lubricant circulation. They are usually located outside the housing, e.g. in sprockets or pulleys, at the end of the shafts.

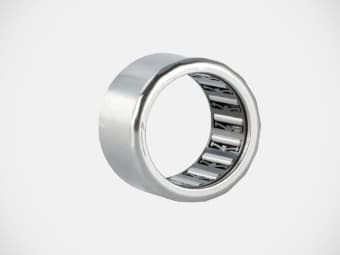

HF, HFL

HF and HFL needle freewheels are manufactured with or without internal bearing. HF type corresponds to the dimensions of needle roller bearings of the HK series. They have an outer ring made of steel sheet.

Separate Freewheel Elements and Cages

Separate freewheel elements and cages can be supplied separately as spare parts or elements for freewheel construction.

Special Freewheels and Building Components

We are happy to make special constructions specific to a particular application according the demand, drawing or description of the problem.

Documents for Download

Freewheels - Preview

Freewheels

TYMA CZ Catalogue

Czech and German (PDF 3.25 MB)
