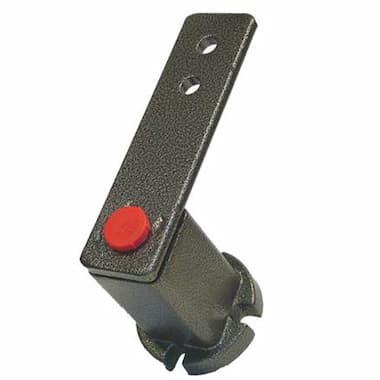

FE 10 - for M8 Screw
Tensioning Arm
Price without VAT: 28.28€
Price including VAT: 34.22€ with VAT
Catalogue price excluding VAT:
28.83€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Specifications
Radius of mounting screw. For RE and FE tensioning arms, it is commonly denoted as A.
Outside radius of tensioning arm. For RE and FE tensioning arms, it is commonly denoted as B.
Height of tensioning arm. For RE and FE tensioning arms, it is commonly denoted as I.
Size of the screw to be used to attach a tensioner. For elements of universal tensioners, it is commonly denoted as M.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Tensioning Arm Description
FE 10 - for M8 Screw tensioning arm forms a core component of automatic tensioners used to maintain proper tension of chains or belts during operation.
They consist of a lever that is flexibly mounted between two housing blocks and attached to the machine frame. The elastic element is made of rubber-elastic segments. Chain or belt tensioning pulleys are mounted on the lever using a screw connection.
This universal elastic element can simultaneously perform the functions of suspension, guidance, tensioning, and vibration damping.
Construction
- Base block with elastic elements
- Arm
- Central screw for front-side external mounting
- Holes for mounting pulley or roller
Typical Applications
Tensioning arms are designed for maintaining proper tension of standard industrial roller chains or belts across all industries.
They are typically used with small and medium-sized roller chains in conveyors, roller conveyors, material handling equipment, construction machinery, woodworking machinery, packaging equipment, and food processing applications.
Properties
- Provide damping, guiding, and tensioning functions
- Simple design and easy installation
- Extend service life and reduce wear
- Reduce vibration and transmission noise
- Operating temperature range from −40 °C to +80 °C
- Maintenance-free design
Materials
Steel.
Documents for Download
Dimensions and Parameters of RE and FE Tighteners Elements and SB Supports
TYMA CZ Data Sheets
Czech and English (PDF 410.26 kB)
Related Products
Universal Chain Tensioners
Sliding blocks, sprockets with screw and idler sprockets for tensioning of industrial roller chains during operation.
Belt Tensioners
Rollers with screw and tensioning pulleys for tensioning of common smaller profiles industrial V-belts during operation.
SB Supports for Mounting of Tensioners
Tensioner mounting supports are standard L-shaped elements used to attach automatic tensioners for belt or chain drives to the machine frame.
Questions about This Product?
Don’t hesitate to contact us – our specialists will be happy to help with any questions about this tensioning arm.
