FE 70 - for M20 Screw
Price without VAT: 822.94€
Price including VAT: 995.76€ with VAT
Catalogue price excluding VAT:
Out of stock, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Tighteners Element Parameters
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Tighteners Element Description

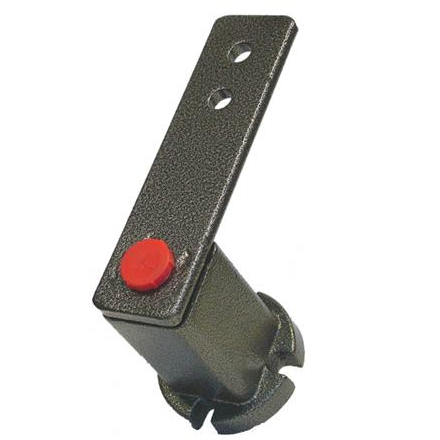

FE 70 - for M20 Screw are the basis for automatic tensioners for tensioning of chains or belts during operation.
They consist of a lever that is flexibly mounted between two squares and attached to the base of the machine. The elastic part consists of rubber elastic segments. The tensioning pulleys of the chains or belts are attached to the lever with a screw.
It is a universal flexible element that can simultaneously perform the functions of suspension, guidance, tensioning and damping.
Tighteners Element Construction
- Base block with flexible elements
- Screw for front mounting
- Holes for screwing to pulley or roller
Tighteners Element Fields of Use
Tighteners elements are designed for tensioning of common industrial roller chains or belts in all industries.
Typical application is small and medium-sized roller chains – for conveyors, roller conveyors, handling equipment, construction machinery, in the woodworking industry, packaging machines or in the food industry.
Tighteners Element Characteristics
- They perform damping, guiding and tensioning function
- Simple construction, easy installation
- They extend service life and reduce wear
- They reduce vibration and transmission noise
- Operating temperatures from −40 °C to +80 °C
- Maintenance-free design
Tighteners Element Material
