R18 (18mm) - 30 × 20 mm (PE-1000, L = 2000 mm)
Belt Guide
Price without VAT: 807,70CZK
Price including VAT: 977,30CZK with VAT
Catalogue price excluding VAT:
824,00CZK
At supplier, we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Belt Guide Parameters
Standard length.

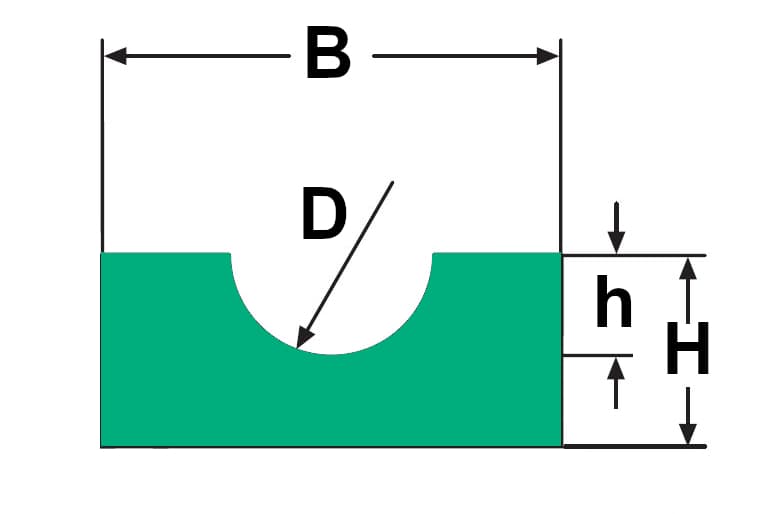

Dimensions of the cross-sectional profile. B represents the width, and H represents the height.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PE-1000.
Belt Guide Description

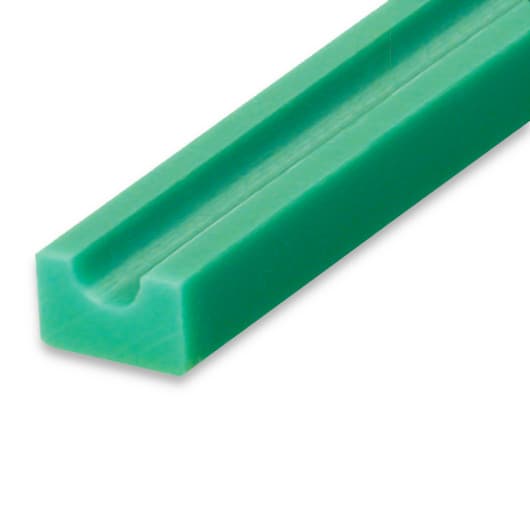

R18 (18mm) - 30 × 20 mm (PE-1000, L = 2000 mm) are standard R type sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the round belt and increase its service life.
The sliding belt guides are made of a special highly resistant plastic.

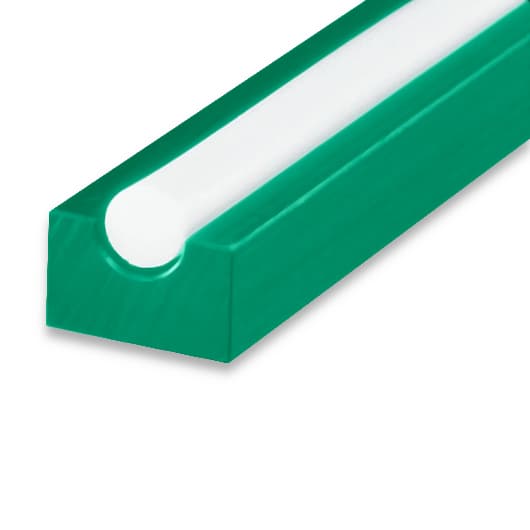

Belt Guide Construction
- Open belt guide
- Round belt
Belt Guide Fields of Use
Sliding belt guides for separate mounting are intended for all types of round belts.
They are most often used for conveyors in the glass, food, woodworking, ceramic industries, sorting and distribution centers, airports or the automotive industry, etc.
Belt Guide Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMWUltra High Molecular Weight) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of R Sliding Belt Guides
TYMA CZ Data Sheets
Czech and English (PDF 124.51 kB)
