Ridge-Top Open-Ended Belts
Polyurethane ridge-top open-ended belts are manufactured for welding as conveyor belts of any length.
Belts are V-belt shaped with a pointed profile on the top side of the belt. They are made of highly resistant BEHA plastic and, in some types, are reinforced with polyester or glass tensile fibers. Some types are combined from two materials of different hardness. They are characterized by high strength, long service life, high temperature and chemical resistance.
80/84 Shore A (PU)
84 Shore A (PU)
88 Shore A (PU)
95 Shore A (PU)

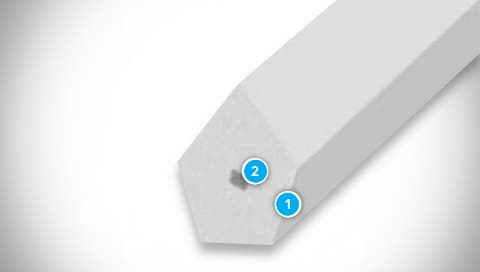

Belt Construction
- Polyurethane
- Tension member
Typical Applications
Belts are used as conveyor belts in many industries, especially for light and medium loads.
The most common applications are as conveyor belts in the glass, ceramic or food industry, but also in logistics and on packaging machines, in printers and in the paper industry or in the production of building materials.
Properties
- High tensile strength and abrasion resistance
- Excellent weldability, possibility of joining the piece
- Resistance to oils, greases, pollution and chemicals
- Temperature resistance from −30 °C to +80 °C
- Can be used in the food industry
Materials
Polyurethane. In some types, reinforced with polyester, glass or aramid tensile fibers.
Belt Code Description
Example:
PU85A 17 × 19 (17/B) - Ridge-Top Reinforced (88 ShA, Form 2, Polyester Cord, Green) - 30m Roll
| Code Part | Description |
|---|---|
| PU85A |
BEHAbelt material name (PU = polyurethane, the number does not correspond to the designation of the Shore A hardness test) |
| 17 × 19 | Belt profile dimension in mm |
| 17/B | Alternative designation of the belt profile |
| Ridge-Top Reinforced | Belt version |
| 88 ShA | Belt hardness according to the Shore A test |
| Form 2 | Shape of the ridge-top |
| Polyester Cord | Material of the tensile fiber |
| Green | Belt color |
| 30m Roll | Standard package |
Documents for Download
Dimensions and Parameters of Ridge-Top Open-Ended Belts
BEHAbelt Data Sheets
English (PDF 4.76 MB)
