T-Profile Open-Ended Belts
Polyurethane T-profile open-ended belts are manufactured for welding as conveyor belts of any length.

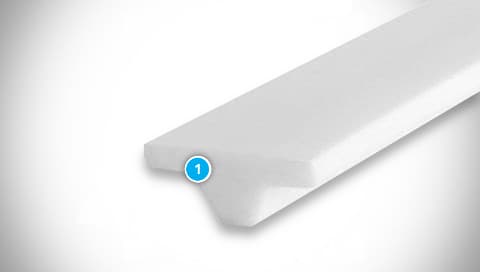

Belts have a T-shape, which consists of the upper flat part of the belt and the lower guide wedge. They are made of highly resistant BEHA plastic. They are characterized by high strength, long service life, high temperature and chemical resistance.
72 Shore A (PU)
84 Shore A (PU)
88 Shore A (PU)
95 Shore A (PU)
Belt Construction
- Polyurethane
Typical Applications
Belts are used as conveyor belts in many industries, especially for light and medium loads.
The most common applications are as conveyor belts in the glass, ceramic or food industry, but also in logistics and on packaging machines, in printers and in the paper industry or in the production of building materials.
Properties
- High tensile strength and abrasion resistance
- Excellent weldability, possibility of joining the piece
- Resistance to oils, greases, pollution and chemicals
- Temperature resistance from −30 °C to +80 °C
- Can be used in the food industry
Materials
Polyurethane.
Belt Code Description
Example:
PU80A 10 × 4.5 - Smooth (84 ShA, Ultramarine Blue) - 30m Roll
| Code Part | Description |
|---|---|
| PU80A |
BEHAbelt material name (PU = polyurethane, the number does not correspond to the designation of the Shore A hardness test) |
| 10 × 4.5 | Belt profile dimension in mm |
| Smooth | Material surface |
| 84 ShA | Belt hardness according to the Shore A test |
| Ultramarine Blue | Belt color |
| 30m Roll | Standard package |
Documents for Download
Dimensions and Parameters of T-Profile Open-Ended Belts
BEHAbelt Data Sheets
English (PDF 10.29 MB)
