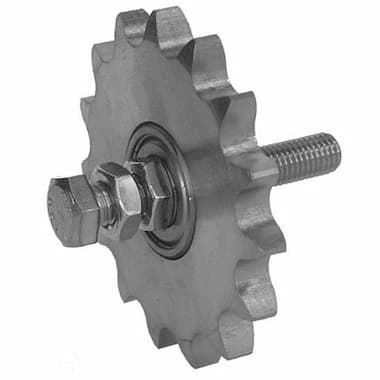

ZK 40-3S (10B-1) - Simplex (15 Teeth, M12)

Tensioning Sprocket

Price for you :

Price without VAT: 26.16

Price including VAT: 31.65 with VAT

Catalogue price excluding VAT:

Out of stock, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Sprocket Parameters

Profile: 10B-1
No. of grooves/teeth: z=15 No. of grooves/teeth
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
Bore: M12
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.380
Pitch diameter Dw (mm) (mm): 83,00
Width (mm): 80,00 Width (mm)
Face width.
Material: Steel Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.

Sprocket Description

ZK 40-3S (10B-1) - Simplex (15 Teeth, M12) are part of the tensioner for tensioning the chains during operation.

They consist of one, two or three tensioning pulleys, depending on the type of chain, and a fastening screw. They are attached to the lever of the universal tensioner with a screw.

It is a universal flexible element that can simultaneously perform the functions of suspension, guidance, tensioning and damping.

Sprocket Construction

ZK Sprocket with Screw Construction

  1. Chain pulley with bearings
  2. Fixing screw with nut and washer

Sprocket Fields of Use

ZK (sprockets with screw) are designed for tensioning of common industrial roller chains in all industries.

Typical application is small and medium-sized roller chains – for conveyors, roller conveyors, handling equipment, construction machinery, in the woodworking industry, packaging machines or in the food industry.

Sprocket Characteristics

  • They perform damping, guiding and tensioning function
  • Simple construction, easy installation
  • They extend service life and reduce wear
  • They reduce vibration and transmission noise
  • Operating temperatures from −40 °C to +100 °C
  • Maintenance-free design
  • Operating speed ≤ 60 m/min

Sprocket Material


Documents for Download

Dimensions and Parameters of ZK Sprockets - Preview

Dimensions and Parameters of ZK Sprockets

TYMA CZ Data Sheets

Czech and English (PDF 195.82 kB)

Sprockets and Plate Wheels - Preview

Sprockets and Plate Wheels

TYMA CZ Catalogue

Czech and English (PDF 3.77 MB)
