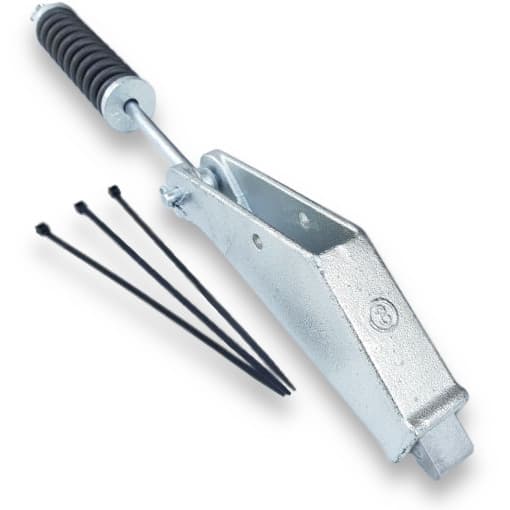

ZV 025 D2 320 (for CONTI POLYFLAT/POLYROPE, with Eye Bolt and Spring)
Wedge Socket
Price without VAT: 57.69€
Price including VAT: 69.80€ with VAT
Catalogue price excluding VAT:
58.84€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Wedge Socket Parameters
Type of compatible belt.
Overall length of the wedge socket.
Length of the wedge socket bolt. For wedge sockets for POLYROPE and POLYFLAT belts, it is commonly denoted as L2.
Overall width of the wedge socket.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation G20Mn5N.
Wedge Socket Description
Wedge sockets are used for fastening CONTI POLYFLAT flat belts and CONTI POLYROPE elevator belts. They consist of a cast iron housing in which the flat belt is inserted and secured with a special wedge against loosening. Depending on the method of attachment, they can be fixed with a bolt or with a bolt and a spring.
Wedge Socket Construction
- Socket housing
- Belt
- Wedge
- Eyebolt
- Nut
- Split pin
- Pin
- Washer
- Cable clamp
Wedge Socket Fields of Use
Wedge sockets for CONTI POLYFLAT and CONTI POLYROPE belts are used in elevators and lifting systems. They are certified for use in passenger elevators according to the EN 81-20/50 Standard.
They are available in various widths according to the respective flat belt.
Documents for Download
Dimensions and Parameters of CONTI POLYROPE Flat Ropes and Wedge Sockets
TYMA CZ Data Sheets
Czech and English (PDF 222.32 kB)
Use and Installation of Wedge Sockets for CONTI POLYFLAT Belts and CONTI POLYROPE Ropes
TYMA CZ User Guide
English (PDF 91.51 kB)
