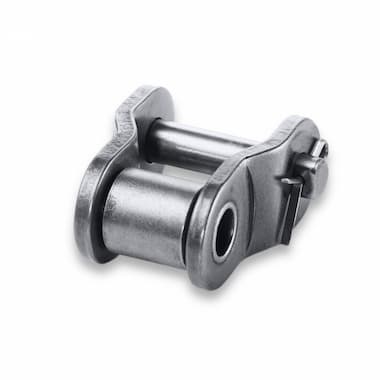

04-1 Standard Crank Connecting Link (6 × 2.8 mm, DIN 8187)
Roller Chain
Price without VAT: 1.89€
Price including VAT: 2.28€ with VAT
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
Specifications
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Chain Description
04-1 Standard Crank Connecting Link (6 × 2.8 mm, DIN 8187) is one of the most common simplex drive chains. It is standardized according to ISO 606 (DIN 8187), meaning it belongs to the European B-series.
The chain consists of outer links with pins and inner links with bushes, on which freely rotating rollers are mounted. The chain is made of steel.
Construction
- Inner link
- Outer link
- Pin
- Bush
- Roller
Typical Applications
04-1 roller chains according to DIN 8187 are designed for general applications, particularly in light industry.
They are primarily used as drive chains but can also be fitted with attachments for material handling and lifting.
Materials
Steel.
Documents for Download
Dimensions and Parameters of DIN 8187 Standard Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 734.61 kB)
