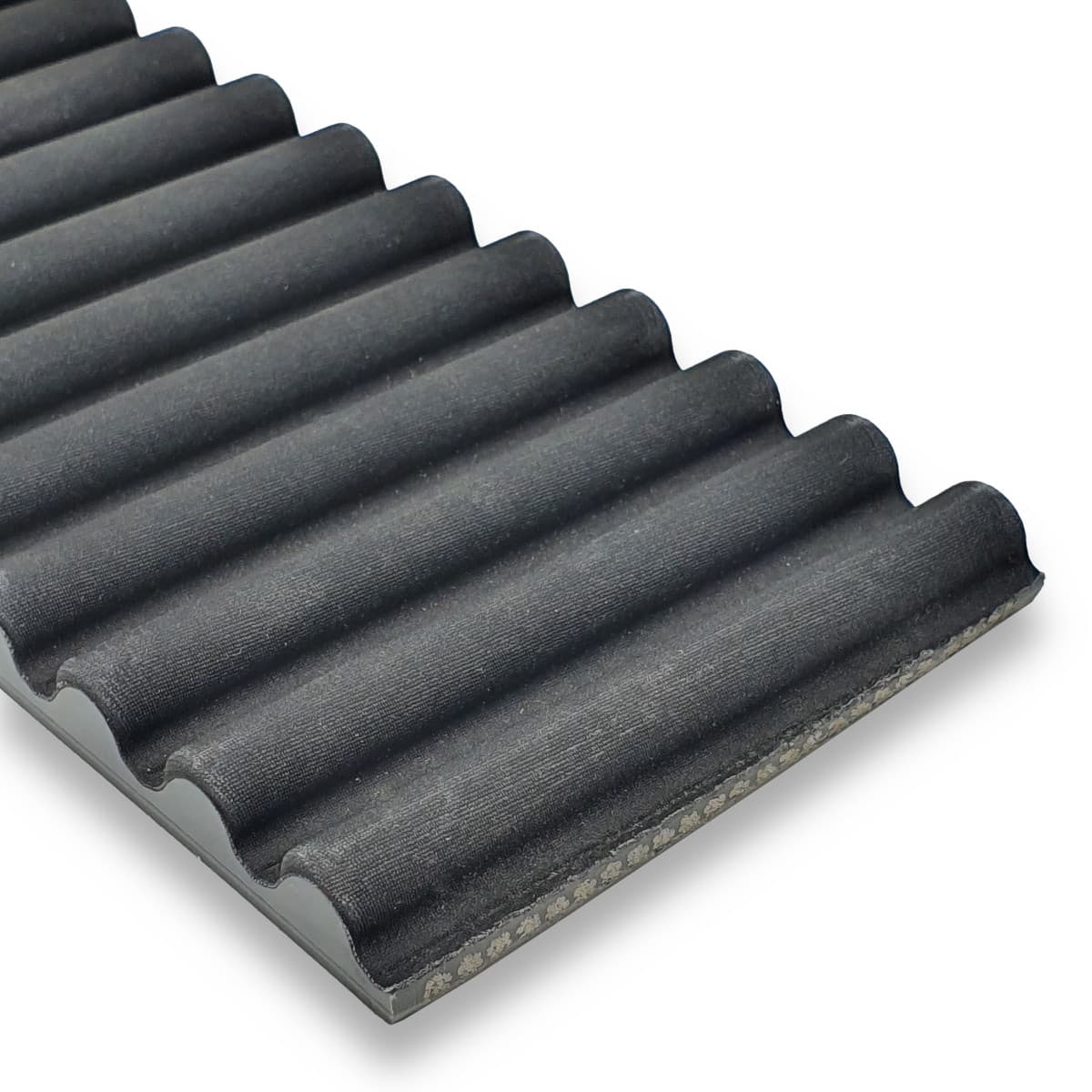

HTD 14M - 25 XHP PAZ CONTI SYNCHRODRIVE (Black)

Open-Ended Timing Belt

Price for you :

Price without VAT: 40.90

Price including VAT: 49.49 with VAT

Catalogue price excluding VAT:
41.70

The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.

At supplier, we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Special pricing available for orders over 100 m: Inquire a Bulk Quote

Belt Parameters

Profile: HTD 14M Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): - Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: ContiTech
Weight (kg): 0.429
Length Ld (mm): 1000,00
Width (mm): 25,00
Material: Polyurethane with Steel Tensile Fiber Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ST.

Belt Description

HTD 14M - 25 XHP PAZ CONTI SYNCHRODRIVE (Black) is open-ended polyurethane timing belt. Its made of thermoplastic polyurethane, which has high dimensional stability and mechanical resistance.

The tension member is made of specially treated steel cords of extremely high strength. The teeth are protected by PAZ nylon fabric as standard, which also reduces the coefficient of friction and wear of the belt.

Belt Construction

CONTI SYNCHRODRIVE XHP Belt Structure

  1. Nylon fabric on teeth – PAZ
  2. Polyurethane teeth
  3. Steel cord tension member
  4. Polyurethane backing

Belt Fields of Use

HTD 14M XHP reinforced open-ended polyurethane belts are used in the most powerful and durable linear and lifting applications.

Typical use is in rack systems, industrial elevators, gantry loaders and cranes for the highest loads.

They successfully replace applications with chain, rope or hydraulic drives.

Belt Characteristics

  • Very high or extremely high transmission power and long life
  • Resistant to oil, fuel, benzol, UV radiation and ozone
  • Wear-resistant
  • Temperature range, depending on application, from −30 °C to +80 °C
  • Maintenance-free
