Hollow Round Open-Ended Belts for Quick Nipple Connection
Polyurethane hollow round open-ended belts are manufactured for welding as conveyor and drive belts of any length as well as solid round belts. However, in the case of a breakdown, they can be easily and quickly connected with a special metal connector (brass nipple).
Belts have a circular outer surface and a circular inner hole. They are made of highly resistant BEHA plastic. They are characterized by high strength, long service life, high temperature and chemical resistance.

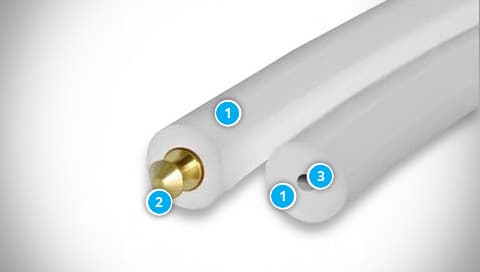

Belt Construction
- Polyurethane
- Brass nipple connection
- Hole for inserting a nipple
Typical Applications
Belts are used as conveyor or drive belts in many industries, especially for light and medium loads.
The most common applications are as conveyor belts in the glass, ceramic or food industry, but also in logistics and on packaging machines, in printers and in the paper industry or in the production of building materials.
Properties
- High tensile strength and abrasion resistance
- Excellent weldability, possibility of joining the piece
- Resistance to oils, greases, pollution and chemicals
- Temperature resistance from −30 °C to +80 °C
- Can be used in the food industry
Materials
Polyurethane.
Belt Code Description
Example:
PU85A 8.0 × 3.2 - Hollow Rough (88 ShA, Green) - 100m Roll
| Code Part | Description |
|---|---|
| PU85A |
BEHAbelt material name (PU = polyurethane, the number does not correspond to the designation of the Shore A hardness test) |
| 8.0 × 3.2 | Belt outer and inner diameter in mm |
| Hollow | Belt version |
| Rough | Material surface |
| 88 ShA | Belt hardness according to the Shore A test |
| Green | Belt color |
| 100m Roll | Standard package |
Documents for Download
Dimensions and Parameters of Hollow Round Open-Ended Belts
BEHAbelt Data Sheets
English (PDF 3.07 MB)
