2-8V 3150 / 2-25J 8001 CONTI V TORQUE TEAM ADVANCE (Formerly CONTI-V MULTIBELT ADVANCE)
Banded V-Belt
Low electrical conductivity – for compliance with requirements to ISO 1813.
Price without VAT: 1,027.73€
Price including VAT: 1,243.56€ with VAT
Catalogue price excluding VAT:
1,048.69€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
Belt Parameters
Nominal length, datum length or working length of the belt. It is commonly denoted as Ld or Ld, and sometimes also as Lw or Lw.
Outside length of the belt. It is commonly denoted as La or La.
The number of ribs corresponds to the number of grooves on the pulley.
In the TYMA Product Catalogues you can find this material also described with the abbreviation CR.
Belt Description

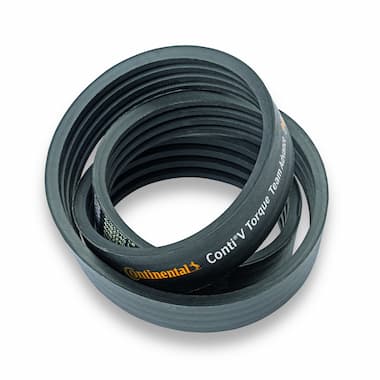

2-8V 3150 / 2-25J 8001 CONTI V TORQUE TEAM ADVANCE (Formerly CONTI-V MULTIBELT ADVANCE) is a banded V-belt in the narrow 8V/25J profile, according to the US RMA/MPTA IP-22 standard, made by joining individual CONTI V ADVANCE reinforced belts into a single wide belt.
The belts are made of a special fiber-reinforced rubber compound and a high-strength tension member. Compared to basic CONTI V TORQUE TEAM banded belts, they offer higher power transmission capacity and longer service life, superior resistance to shock loads, greater transverse rigidity, and excellent thermal and chemical resistance.
Banded V-belts are used to reduce vibration of individual belts, in drives with shock or irregular loads, and in applications with large center distances.
Belt Construction
- Fabric jacket
- Fiber-reinforced synthetic rubber bottom section
- Polyester tension member
- Fiber-reinforced synthetic rubber backing
Belt Fields of Use
CONTI V TORQUE TEAM ADVANCE banded V-belts in the 8V/25J profile are used in heavily loaded machinesacross all industrial sectors.
They are typically used in agricultural and machine tools, crushers, fans, paper processing equipment,cement plants,power plants, andmining operations.
They are suitable for drives with irregular loads and larger center distances.
Belt Characteristics
- Transmission of increased load, smooth, quiet operation, long service life
- Increased resistance to shocks and uneven loads
- Resistance to oil and other chemicals
- Temperature resistance from −40 °C to +80 °C
- Antistatic properties according to ISO 1813
Belt Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
