Timing Pulley Flanges

The flanges are components for the production of timing pulleys. These are steel rings designed to secure the side guide of the timing belt. Their upper edge is molded with a slope to ensure the belt starts up. It is produced in different sizes to match the sizes of timing pulleys of different profiles and in different thicknesses of uncoated or galvanized steel. They can also be blackened to order.

On the pulley, it is necessary to make a fitting with a small overlap for mounting the flange and then press it apart. This secures the flange and prevents it from loosening.

In order to prevent the belt from "falling" off the pulley, the design and construction of the transmission is based on the principle that at least one flange must be on each side of the belt.

display product filter

Products are sorted by name in ascending order.

Type 1 (THK = 1 mm) Timing pulley flange

Type 1 (THK = 1 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

0.58 excl. VAT

0.70 incl. VAT

Type 10 (THK = 1 mm) Timing pulley flange

Type 10 (THK = 1 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

0.93 excl. VAT

1.13 incl. VAT

Type 100 (THK = 1.5 mm) Timing pulley flange

Type 100 (THK = 1.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

11.34 excl. VAT

13.72 incl. VAT

Type 11 (THK = 1 mm) Timing pulley flange

Type 11 (THK = 1 mm)

Timing pulley flange

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

1.01 excl. VAT

1.22 incl. VAT

Type 12 (THK = 1 mm) Timing pulley flange

Type 12 (THK = 1 mm)

Timing pulley flange

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

0.98 excl. VAT

1.18 incl. VAT

Type 13 (THK = 1 mm) Timing pulley flange

Type 13 (THK = 1 mm)

Timing pulley flange

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

0.98 excl. VAT

1.18 incl. VAT

Type 14 (THK = 1 mm) Timing pulley flange

Type 14 (THK = 1 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

0.58 excl. VAT

0.70 incl. VAT

Type 15 (THK = 1 mm) Timing pulley flange

Type 15 (THK = 1 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

0.91 excl. VAT

1.10 incl. VAT

Type 153 (THK = 2.5 mm) Timing pulley flange

Type 153 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

11.92 excl. VAT

14.42 incl. VAT

Type 154 (THK = 2.5 mm) Timing pulley flange

Type 154 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

13.86 excl. VAT

16.76 incl. VAT

Type 155 (THK = 2.5 mm) Timing pulley flange

Type 155 (THK = 2.5 mm)

Timing pulley flange

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

14.29 excl. VAT

17.29 incl. VAT

Type 156 (THK = 2.5 mm) Timing pulley flange

Type 156 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

14.89 excl. VAT

18.02 incl. VAT

Type 157 (THK = 2.5 mm) Timing pulley flange

Type 157 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

16.09 excl. VAT

19.46 incl. VAT

Type 158 (THK = 2.5 mm) Timing pulley flange

Type 158 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

18.63 excl. VAT

22.55 incl. VAT

Type 159 (THK = 2.5 mm) Timing pulley flange

Type 159 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

17.74 excl. VAT

21.46 incl. VAT

Type 16 (THK = 1 mm) Timing pulley flange

Type 16 (THK = 1 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

1.01 excl. VAT

1.22 incl. VAT

Type 160 (THK = 2.5 mm) Timing pulley flange

Type 160 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

22.34 excl. VAT

27.04 incl. VAT

Type 161 (THK = 2.5 mm) Timing pulley flange

Type 161 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

21.62 excl. VAT

26.16 incl. VAT

Type 162 (THK = 2.5 mm) Timing pulley flange

Type 162 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

24.89 excl. VAT

30.12 incl. VAT

Type 163 (THK = 2.5 mm) Timing pulley flange

Type 163 (THK = 2.5 mm)

Timing pulley flange

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

25.61 excl. VAT

30.99 incl. VAT

Products are sorted by name in ascending order.

Total 7 pages

Flanges Fields of Use

Timing pulley flanges are designed for the production of timing pulleys of any shape. They are used in cases where a standardly manufactured timing pulley cannot be used and it is necessary to make the pulley from a rod and provide it with one or two flanges.

As well as the timing pulleys, they are used in machine toolspackaging machines, printers, single-purpose machines, in the foodpaper and glass industries and in many other industries.

Flanges Material

Steel.

Other materials on demand.

Surface Finish

  • No surface treatment
  • Zinc plated
  • Blackened (on demand)

Notice

Dimensions of the mounting for pressing the side panels - see the technical catalogs of the pulley manufacturers or contact our Technical Department.

Flanges Code Description

Example:
Type 517 (THK = 0.5 mm, Zinc-Plated)

Code Part Description
Type 517

Flange type (sizes can be found in the data sheet)

THK = 0.5 mm

Thickness

Zinc-Plated

Surface finish of flange

Flanges Mounting

Mounting Method Description Illustration

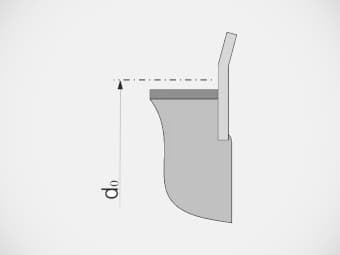

Edge Rolling

The flange is machined or pressed from sheet metal. It has a moulded tilt. It is fixed by rolling an edge on the front of the timing pulley, alternatively it can be pressed in several places (it then fulfils the same function).

The most common method of mounting standard catalogue pulleys. The same applies to non-standard pulleys unless otherwise specified.

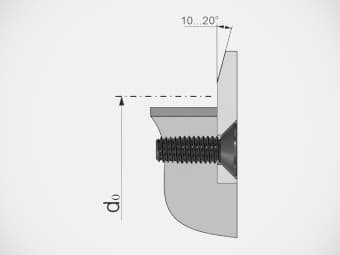

Fixing with Screws

The flange is machined with a bevel on the outer diameter for the belt run-up. It is fastened with countersunk head screws.

A mounting method for very demanding applications where there is a risk of the flange falling off. In these cases it is recommended to secure the pressed flanges with extra bolts or to prepare them as fully bolt secured.

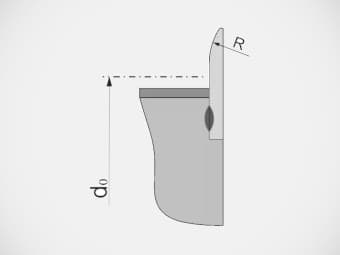

Fastening by Welding

The flange is machined with a rounding on the outer diameter for proper belt run-up. It is fixed by spot welding.

Documents for Download

Dimensions and Parameters of Timing Pulley Flanges - Preview

Dimensions and Parameters of Timing Pulley Flanges

TYMA CZ Data Sheets

Czech and English (PDF 103.19 kB)

Pulleys and Clamping Bushes - Preview

Pulleys and Clamping Bushes

TYMA CZ Catalogue

Czech and English (PDF 3.64 MB)
