CONTI-V MULTIBELT FO Toothed Reinforced V-Belts
CONTI-V MULTIBELT FO banded V-belts are created by joining individual V-belts into one wide strip.
They are based on so-called cut V-belts with ground sides and internal teeth. They are made of a special fiber-reinforced mixture of rubber and high-strength polyester tensile fiber. Unlike the regular basic CONTI-V MULTIBELT types, they have a higher transmitted power, higher accuracy, less elongation, higher temperature resistance. The cover band increases the rigidity of the belt and prevents it from twisting.
Low electrical conductivity – for compliance with requirements to ISO 1813.

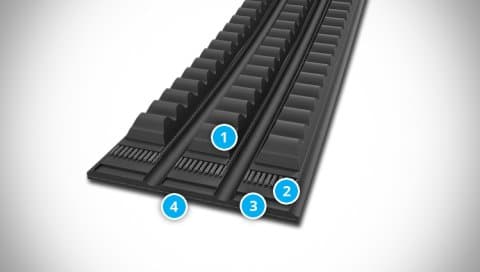

- Synthetic rubber bottom section
- Polyester tension member
- Synthetic rubber backing
- Cotton cover fabric
Belts Fields of Use
CONTI-V MULTIBELT FO banded V-belts are used in highly loaded machines in special applications, especially in construction machines, asphalt milling machines, crushers, buses, trucks and in other cases where non-uniform loads are transmitted at high operating temperatures.
- Increased load transfer, long service life
- Increased resistance to shocks and uneven loads
- Small pulley diameters and small overall drive dimensions
- Excellent flexibility, quiet and smooth operation
- Resistance to oil and other chemicals
- Temperature resistance from −30 °C to +70 °C
- Antistatic properties according to ISO 1813
Belts Code Description
2-XPB 2450 Ld FO CONTI-V MULTIBELT
Nominal length in mm
Type of belt
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
Documents for Download
Question about the Belts Category
Do not hesitate to contact us with any questions about products in this category.
Belt Manufacturer Profile
Continental is the world’s largest specialist for rubber and plastics technology in the non-tire rubber sector. A division of Continental AG, the company develops and produces functional parts, components and systems for the automotive and other important industries.
ContiTech importance on immediate proximity to customers. ContiTech is active in 26 countries with 75 production sites and more than 40 R&D facilities and sales organizations. The customers around the world stand to profit: Greater safety. Higher efficiency. Closer proximity.
TYMA CZ, s.r.o., is the official distributor of Continental ContiTech Power Transmission Group.
