OKS M3 Z20/20 A (1:1, Steel)
Bevel Gear
Price without VAT: 39.20€
Price including VAT: 47.43€ with VAT
Catalogue price excluding VAT:
39.98€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Bevel Gear Parameters
Designed for further machining to the final dimension. The pre-drilled hole is therefore not machined to final tolerance for direct use. The size of the pre-drilled hole may vary according to the production batch.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Bevel Gear Description

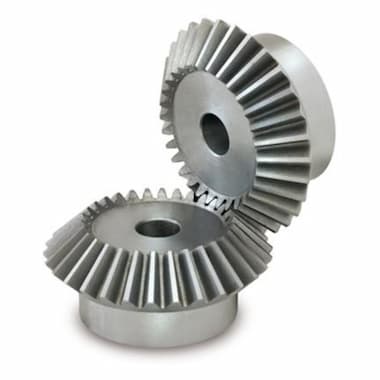

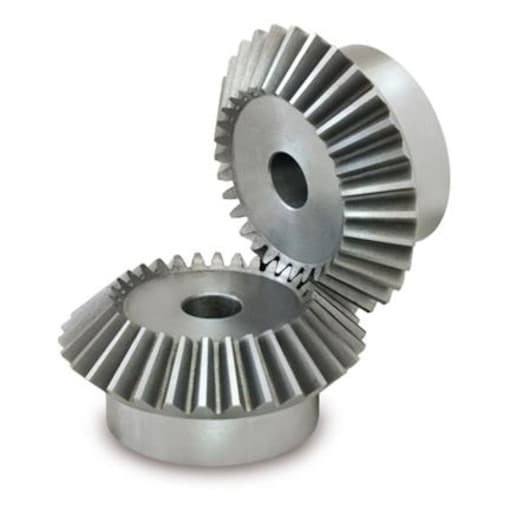

OKS M3 Z20/20 A (1:1, Steel) are machine parts used to transmit torque between two shafts with different axes.
They are supplied in modules M1 to M5. Bevel gears are most often supplied as a gear train (a pair of gears) with a ratio of 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:3.5 and 1:4. They can also be supplied as separate wheels.
Bevel gears with straight teeth are divided according to type into type A according to DIN 3967 in accordance with UNI 6588, or type B – Gleason System.
The bevel gears we offer have straight teeth and an angle of engagement of 20°.
Bevel Gear Fields of Use
Bevel gears are designed for general use in mechanical engineering.
The standardized bevel gears we supply are designed primarily for basic, simpler constructions and technical solutions for conveyors, presses, gearboxes, woodworking machines, agricultural machines, but of course also for many other applications.
Bevel Gear Material
Steel C45 (ČSN 12050), gearing not hardened.
Documents for Download
Dimensions and Parameters of Bevel Gears
TYMA CZ Data Sheets
Czech and English (PDF 1.09 MB)
Related Products
Spur Gears
Basic spur gears with front teeth of the M1 – M8 module for gears with a constant ratio and with a small axial distance of the shafts.
Spur Gear Racks
Basic spur gear racks with a square cross-section and straight teeth of the M1 – M8 module and standard lengths in the range of 0.5 to 3.0 m.
Sprockets with Hub for DIN 8187 Roller Chains (B-Series)
For DIN 8187 roller chains (03-1, 04-1, 05B, 06B, 08B, 10B, 12B, 16B, 20B, 24B, 28B, 32B). In simplex, duplex, and triplex designs.
