Typ 156 - 107 × 146 × 2.5 mm
Timing pulley flange
Price without VAT: 14.89€
Price including VAT: 18.02€ with VAT
Catalogue price excluding VAT:
15.16€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Flange Parameters
Outside diameter of the pulley. It is commonly denoted as Da or Da, and sometimes also as De or De.
Inside diameter of the flange or bore diameter. It is commonly denoted as Di or Di.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Flange Description

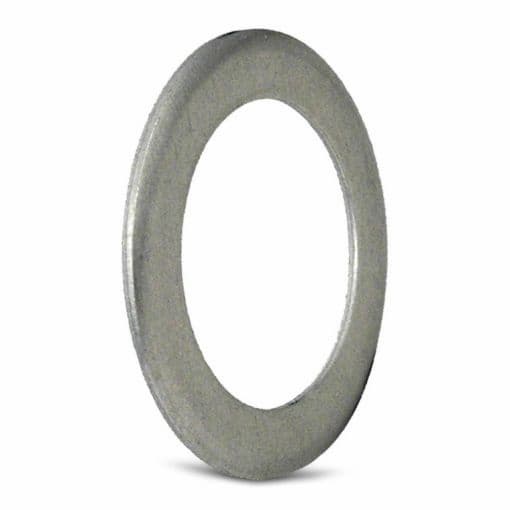

Typ 156 - 107 × 146 × 2.5 mm is a flange for produced timing pulleys. These are steel rings designed to secure the side guide of the timing belt. Their upper edge is molded with a slope to ensure the belt starts up. It is made of steel with no surface treatment.
On the pulley, it is necessary to make a fitting with a small overlap for mounting the flange and then press it apart. This secures the flange and prevents it from loosening.
In order to prevent the belt from "falling" off the pulley, the design and construction of the transmission is based on the principle that at least one flange must be on each side of the belt.
Flange Fields of Use
Timing pulley flanges are designed for the production of timing pulleys of any shape. They are used in cases where a standardly manufactured timing pulley cannot be used and it is necessary to make the pulley from a rod and provide it with one or two flanges.
As well as the timing pulleys, they are used in machine tools, packaging machines, printers, single-purpose machines, in the food, paper and glass industries and in many other industries.
Flange Material
Steel with no surface treatment.
Notice
Dimensions of the mounting for pressing the side panels - see the technical catalogs of the pulley manufacturers or contact our Technical Department.
