360 DH 075 CONTI SYNCHROTWIN (Neoprene)
Double-Sided Timing Belt
Price without VAT: 37.15€
Price including VAT: 44.95€ with VAT
Catalogue price excluding VAT:
37.89€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Belt Parameters
Pitch length of the belt. It is commonly denoted as Lp or Lp.
In the TYMA Product Catalogues you can find this material also described with the abbreviation CR.
Belt Description

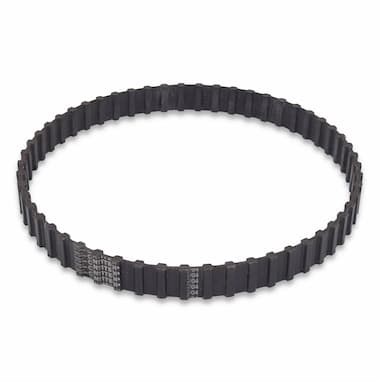

360 DH 075 CONTI SYNCHROTWIN (Neoprene) is a double-sided inch sizes timing belt in trapezoidal profile for drives with change of direction of rotation. It is manufactured according to ISO 5296.
The standard design allows economical solutions for double-sided synchronous power transmission in the lower and middle power range.
Belt Construction
- Polyamide fabric
- Synthetic rubber teeth
- Glass cord tension member
- Synthetic rubber backing
Belt Fields of Use
The double-sided timing belts with trapezoidal profile in inches are suitable for synchronous drives with same-sense and counterrotating motion. They allow compact space and weight-saving drives with an efficiency of up to 98 %.
Belt Characteristics
- High transmission power and long life
- Conditionally resistant to oil
- Suitable for tropical climates
- Electrical conductivity according to ISO 9563 for high performance variants
- Temperature range depending on application, from& minus;20 °C to +100 °C
Documents for Download
Related Products
H Inch Sizes Standard Pilot Bore Timing Pulleys
Tooth pitch: 12.700 mm
Teeth z = 14 - 156
Stand. diameter Dp (mm): 56.60 - 630.64
L Inch Sizes Taper Lock Timing Pulleys
Measuring Instruments
Our professional-quality special tools and measuring instruments will assist you in maintaining and fitting drive components.
Belt Manufacturer Profile
Continental is the world’s largest specialist for rubber and plastics technology in the non-tire rubber sector. A division of Continental AG, the company develops and produces functional parts, components and systems for the automotive and other important industries.
ContiTech importance on immediate proximity to customers. ContiTech is active in 26 countries with 75 production sites and more than 40 R&D facilities and sales organizations. The customers around the world stand to profit: Greater safety. Higher efficiency. Closer proximity.
TYMA CZ, s.r.o., is the official distributor of Continental ContiTech Power Transmission Group.
