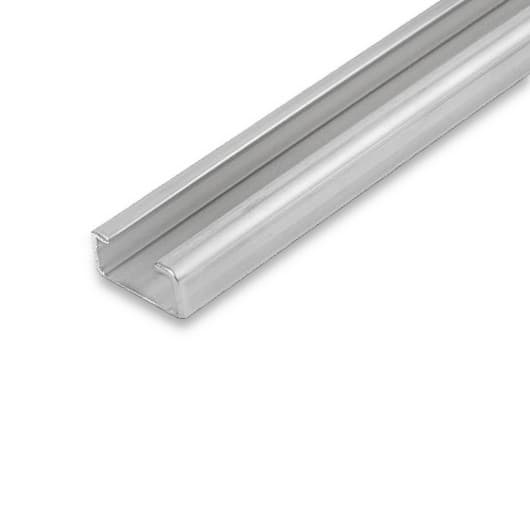

C-9 - 38 × 18 mm (Zinc Plated, L = 2000 mm)
Metallic C-Profile
Price without VAT: 11.68€
Price including VAT: 14.14€ with VAT
Catalogue price excluding VAT:
11.89€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
C-Profile Parameters
Standard length.

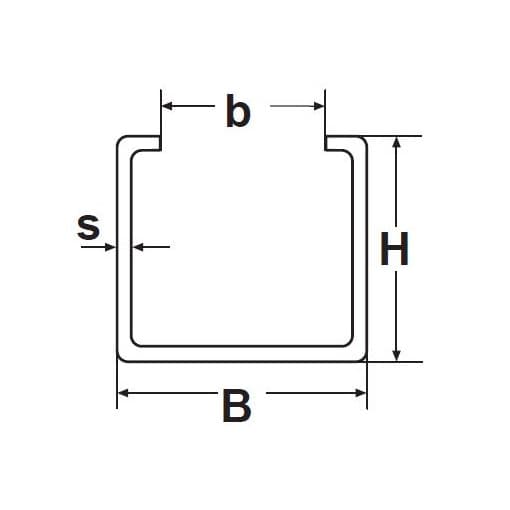

Dimensions of the cross-sectional profile. B represents the width, and H represents the height.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
C-Profile Description
C-9 - 38 × 18 mm (Zinc Plated, L = 2000 mm) is a standardized metal C-profile used mainly for attaching plastic guides of chains or belts to the machine. It is made of steel.
Grooves are milled in the plastic guide for use on the C-profile. The grooves are made with the necessary clearance, which eliminates thermal expansion and does not cause additional stress, twisting or other deformations of the plastic guides.
For the sliding guide in the e-shop offer and in the catalog, the relevant type of C-profile is indicated (according to the size and type of guide).
Caution
Plastic guides for C-profiles are supplied without these C-profiles. Choose the size of the profile according to the information given for the type of guide.
C-Profile Fields of Use
C-profiles for chain or belt sliding guides are used in many industries.
They are used in the food, woodworking, glass, ceramic industries, on conveyors of all kinds, in distribution centers, at airports, on packaging machines or in the automotive industry, etc.
C-Profile Material
Steel.
Documents for Download
Dimensions and Parameters of C-Profiles for Sliding Guides
TYMA CZ Data Sheets
Czech and English (PDF 180.31 kB)
