CONTI LASER ALIGNER Belt Aligner
Measuring Instrument
Price without VAT: 419.05€
Price including VAT: 507.05€ with VAT
Catalogue price excluding VAT:
427.57€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Instrument Parameters
Instrument Description

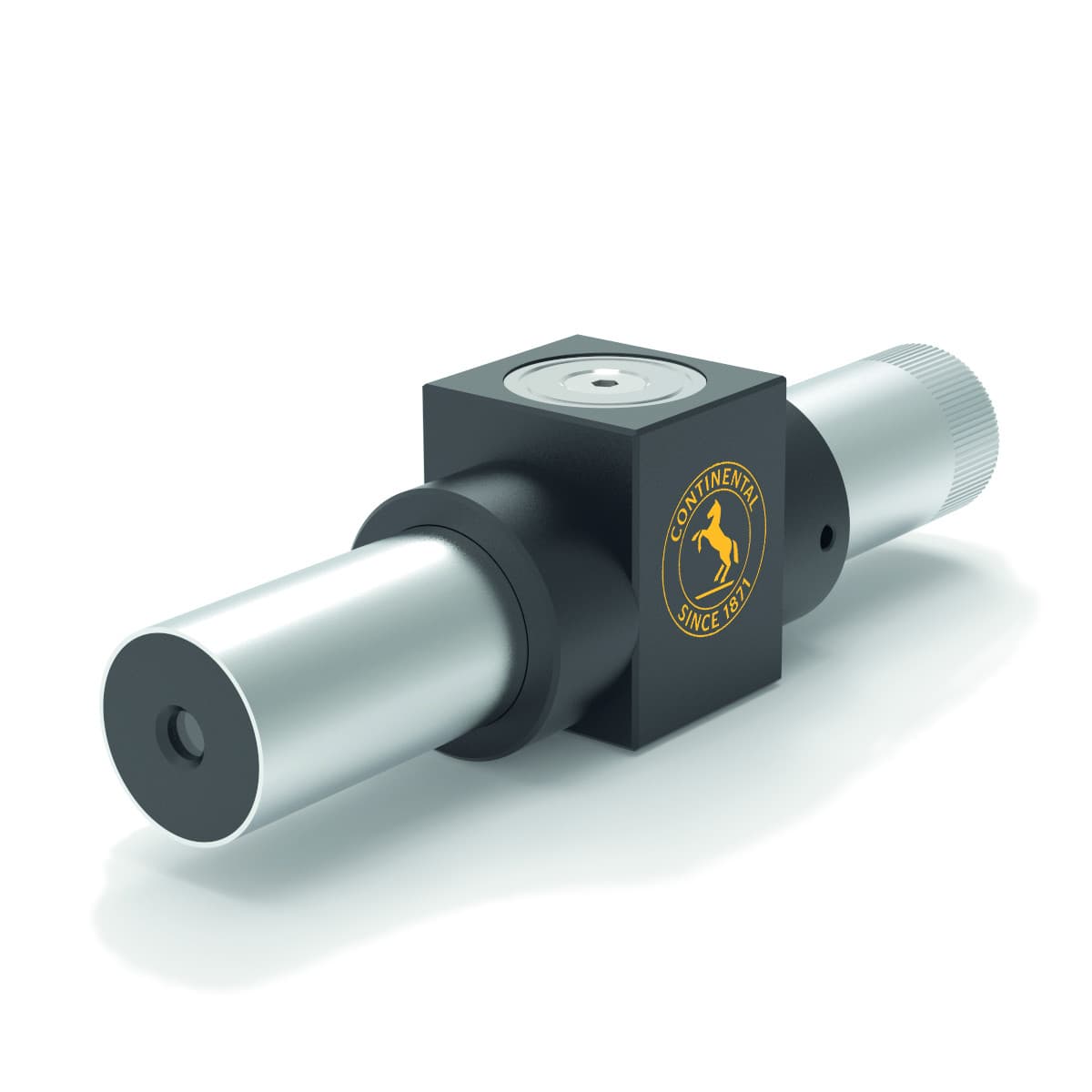

CONTI® LASER ALIGNER is a laser-based alignment tool for accurate and efficient adjustment of belt and chain drives.
Instrument Advantages
- Quick and easy to use
- Optical output power of 5 mW
- Enables perfectly aligned projection
- Highly accurate measurement
- Reduces the wear of the belt drives
- Improves time and quality management
Operating Instructions

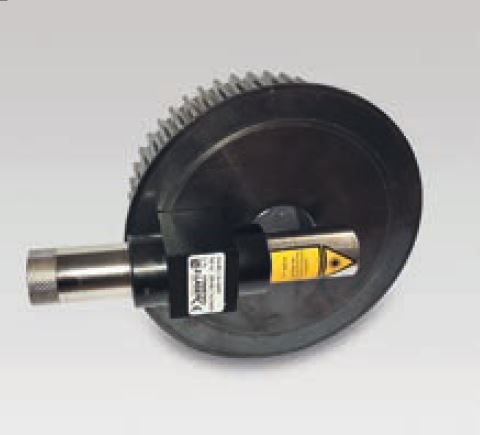

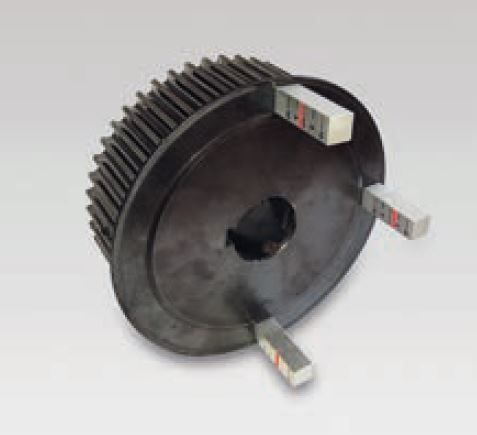

- To align the belts, position the 3 target magnets on the side of the pulley, respectively at positions 0 °, 90 ° and 270 °.
- For magnetic pulley installation: Fix the Conti Lase Belt-Aligner at the side of the other pulley, using a magnet plate, if necessary. (Caution, laser line-difference.)
- Switch on the Conti Laser Belt-Aligner to align it to the target magnets.
- For non-magnetic pulley installation: Use strong double-sided tape.
- The alignment of the belt drive (horizontal and vertical) is achieved when the Iaser beam at all 3 target magnets is on the same marking.
- lf necessary, align the belt drive and check it again.
Warning
Do not Iook into the Iaser beam! Please take notice of magnetic fields! Take note for safety regulation BGV-B2! Do not use it in explosive areas! Please keep dry!
CE-verified.
