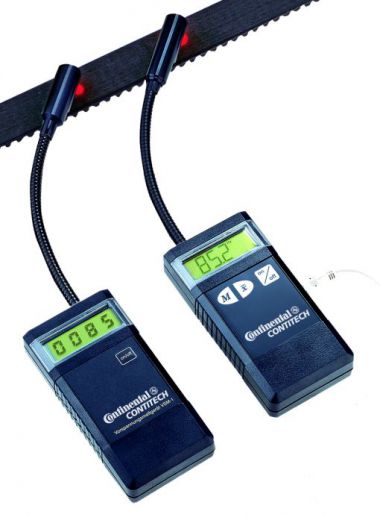

CONTI VSM-1 Belt Tension Tester
Measuring Instrument
Price without VAT: 776.75€
Price including VAT: 939.87€ with VAT
Catalogue price excluding VAT:
792.60€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Instrument Parameters
Instrument Description
The CONTI VSM-1 tension gauge is a fully electronic measuring instrument designed specially to measure the initial tension of timing belts, multiple V-ribbed belts and V-belts.
The right initial tension in force- and form-locked belt drives is a prerequisite for trouble-free, long-term operation of drives in industrial applications.
Instrument Properties
- Non-contact measurement
- Flexible sensor arm permits monitoring even where access is difficult
- Precise readings using optoelectronic measurement method
