EAGLE 8M-32 PAZ (White)
Open-Ended Timing Belt
Price without VAT: 58.18€
Price including VAT: 70.40€ with VAT
Catalogue price excluding VAT:
59.35€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
Belt Parameters
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ST.
Belt Description

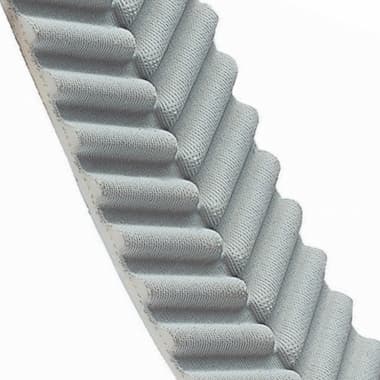

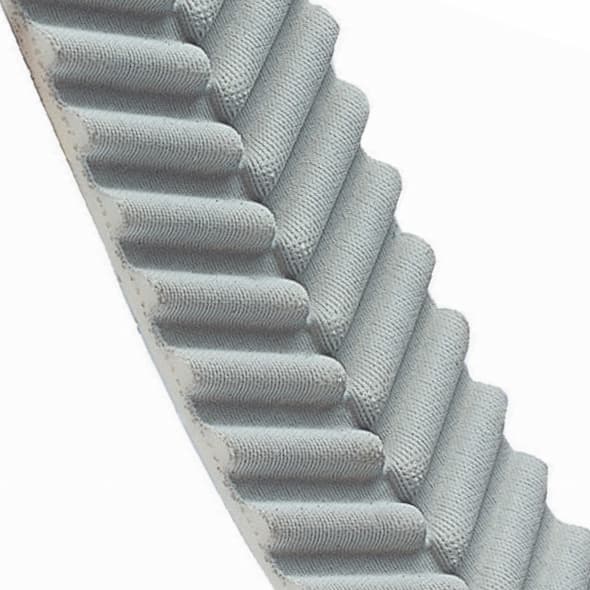

EAGLE 8M-32 PAZ (White) is a polyurethane self-guiding open-ended timing belt manufactured of thermoplastic polyurethane, which has high dimensional stability and wear resistance, and steel tensile fiber.
The open-ended belts can be welded into endless belts.
Belt Construction
- Polyurethane helical offset teeth
- Steel tension member
- Polyurethane back
- Nylon covering fabric on the teeth
Belt Fields of Use
EAGLE 8M polyurethane timing belts are used in specialized applications where a self-guiding belt is required, without alignment by a guide track or pulley flanges. Additionally, these belts offer significantly lower noise and vibration compared to other profiles with straight-cut teeth.
They are commonly used in high-precision positioning and sorting applications, as well as in single-purpose machines, woodworking, packaging, and food processing equipment.
Belt Characteristics
- High transmitted power and long life
- Resistant to oil, petrol, benzene, UV radiation and ozone
- Abrasion resistance
- Temperature resistance, depending on the method of use, from −30 °C to +80 °C
- Up to 19 dB noise reduction compared to straight tooth timing belts
- Arrow gearing has self-guiding capabilities, no belt guidance is necessary
- Very quiet operation and extremely low vibration
- Aging and ozone resistance
Documents for Download
Dimensions and Parameters of Polyurethane Open-Ended Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 903.91 kB)
Related Products
EAGLE 8M Timing Pulleys for SILENTSYNC Belts
EAGLE Clamping Plates for Polyurethane Timing Belts
5M, 8M, 10M and 14M profile for polyurethane self-guided timing belts with H.O.T.Helical Offset Tooth
The helical toothing of the H.O.T. profile delivers a degree of operational smoothness unrivaled by other timing belts The noise level can be reduced by up to 19 dB, and the polygon effect is almost eliminated, resulting in up to 20% lower vibrations. The profile’s offset toothing means the belt is also self-tracking: Flanges are not necessary, as a result of which the width of the system can be reduced. profile (for EAGLE and SILENTSYNC belts).
