GTR 8M-3600-12 CONTI FALCON PD
Timing Belt
Antistatic – for compliance with requirements to ISO 9563.
Price without VAT: 197.48€
Price including VAT: 238.96€ with VAT
Catalogue price excluding VAT:
201.50€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
Belt Parameters
Pitch length of the belt. It is commonly denoted as Lp or Lp.
In the TYMA Product Catalogues you can find this material also described with the abbreviation HNBR.
Belt Description

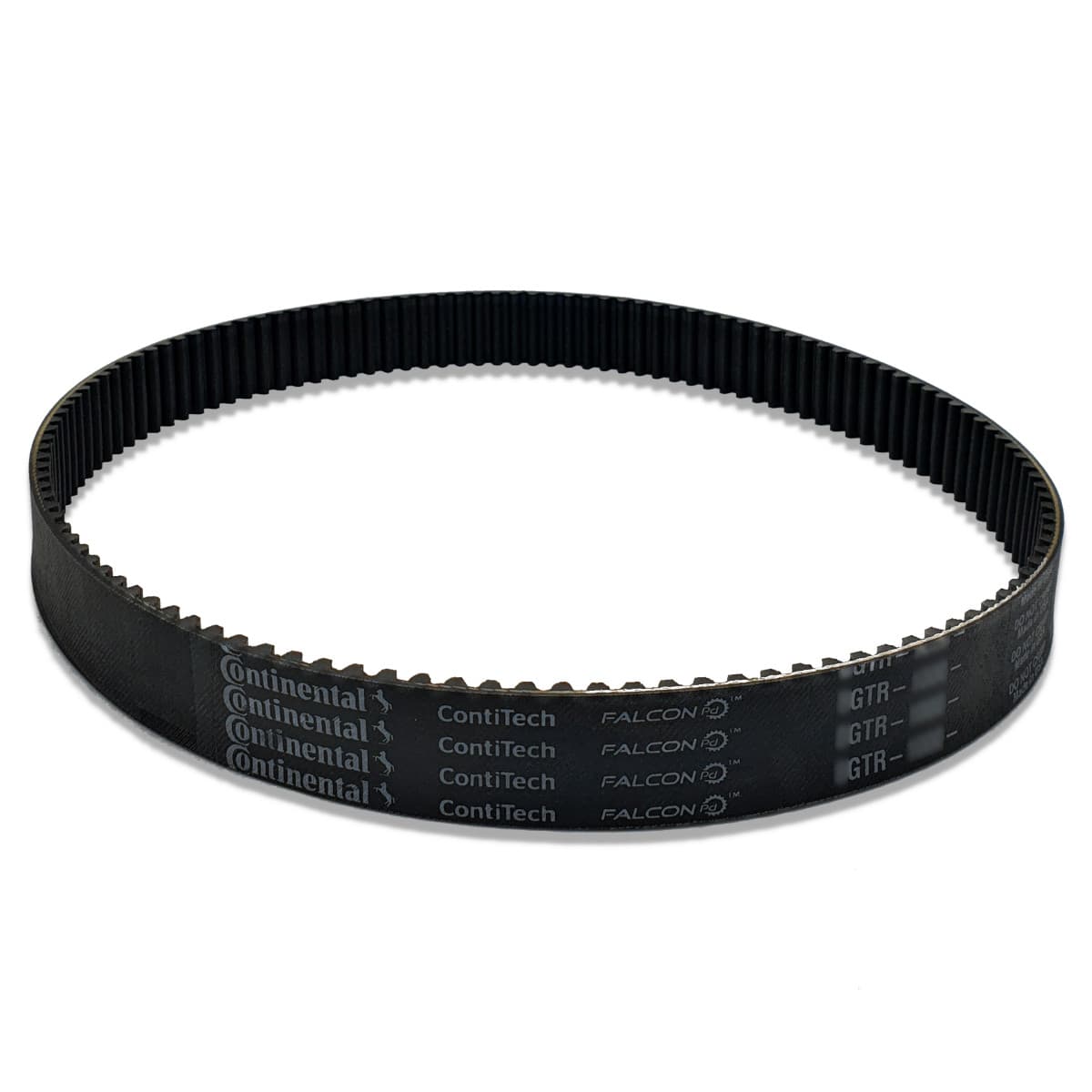

GTR 8M-3600-12 CONTI FALCON PD is a reinforced rubber timing belt intended to transmit the highest torques. It is manufactured according to ISO 9563.
The belts have a special material composition of highly resistant synthetic rubber and special aramid tension member, which guarantees the highest wear resistance and performance. The belt has a high tear resistance.
These belts were developed in the USA by GoodYear company, which has been a part of Continental since 2015.
Made in USA
Belt Construction
- Specially treated fabric
- Synthetic rubber teeth
- Aramid tension member
- Synthetic rubber backing
Belt Fields of Use
CONTI FALCON PD timing belts are among the most durable and powerful rubber timing belts and are used in transmissions with high shocks, the highest torques and acceleration.
They are typically used in machine tools, presses, fans, pumps, in hazardous environments, cooling systems in the energy, chemical and petrochemical industries, and many other machines.
Belt Characteristics
- Temperature range, depending on application from −30 °C to +130 °C
- Compatible with CTDConti Torque Drive
The CTD profile is a symbiosis of the HTD and STD profiles, combining the benefits of both tooth geometries. The tooth height and width correspond to that of the HTD profile for transmitting extremely high torques and preventing jump-over at the same time, while the involute-shaped flank ensures very smooth running.; suited for new drive designs and also for use in existing systems - Antistatic in accordance with ISO 9563
- Conditionally resistant to oil
- Suitable for reverse flexing / reverse tensioning idlers
- Maintenance-free
Belt Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
Documents for Download
Dimensions and Parameters of CONTI FALCON PD GTR 8M Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 159.96 kB)
