HRC 150 - Buffer (75 Shore A, Black, Rubber)
Shaft Coupling
Price without VAT: 8.18€
Price including VAT: 9.90€ with VAT
Catalogue price excluding VAT:
8.35€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Shaft Coupling Parameters
Width of the coupling element. In HRC couplings, it is commonly denoted as G.
Outer diameter of the coupling. In HRC couplings, it is commonly denoted as De or De.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NBR.
Shaft Coupling Description

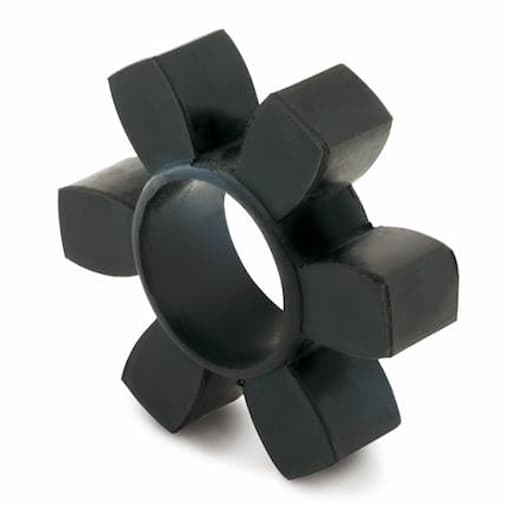

HRC 150 - Buffer (75 Shore A, Black, Rubber) is a part designed for HRC shaft couplings.
HRC are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and a rubber element. They transmit torque through pressure-stressed elastic star-shaped buffer which absorbs shock and torsional vibration. This element is oil resistant and electrically conductive.
Shaft Coupling Construction
- Hubs
- Buffer
Shaft Coupling Fields of Use
HRC flexible couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors, construction machinery and many other machines. They are available in two-piece cast iron design.
Shaft Coupling Characteristics
- Alignment of radial, axial and angular misalignment of shafts
- Parallel misalignment up to 0.5 mm, axial misalignment up to 1.7 mm
- Use for a temperature range from −40 °C to +100 °C
- High speed capability, cost effective solution
- Simple assembly without the need to modify the bore (applies to versions with Taper Lock bushings)
Documents for Download
Dimensions and Parameters of HRC Elastic Couplings
TYMA CZ Data Sheets
Czech and English (PDF 494.92 kB)
