EMF Connected Polyurethane Conveyor Timing Belts

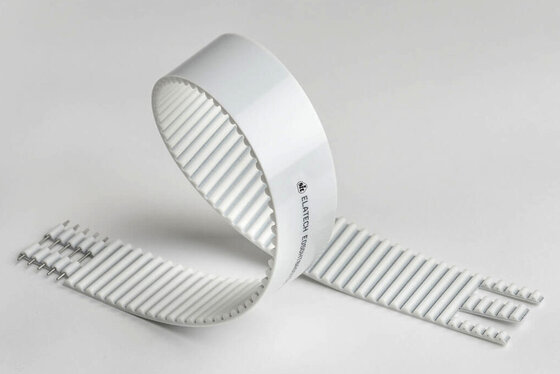

EMF connected belts are endless conveyor polyurethane timing belts made of standard open-ended belts connected by a special mechanical fastening with metal pins. The connection is detachable.
The belts are ready in advance and can be connected very quickly directly on the machine. The open-ended belts are ready for the required size. A special finger joint is cut on both ends and holes are made through the teeth.
In this way, belts with surface layers can be connected, too.

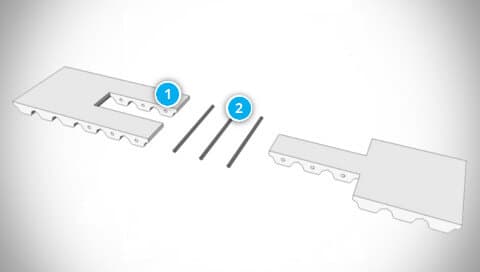

Belts Construction
- Polyurethane EMF belt with a prepared cut-out joint
- Connecting metal pins
Belts Fields of Use
Polyurethane EMF connected belts are used in selected areas of industry as conveyor timing belts.
They are most often used with machines where it is necessary to connect the belt directly on the device without difficult disassembly of the device. They are used in the automotive or woodworking industries, in distribution centers, packaging machines and in many other industrial fields.
Belts Code Description
Example:
AT10 - 50 - 8920 EMF
| Code Part | Description |
|---|---|
| AT |
Profile |
| 10 |
Tooth pitch in mm |
| 50 |
Belt width in mm |
| 8920 |
Belt length in mm |
| EMF |
Type of belt (with an EMF connection) |
Optional Belt Surface Layers
The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.
| Layer Name | Material | Layer Illustration |
|---|---|---|
| PAZ (NFT) - nylon fabric on teeth Low coefficient of friction |
Nylon |  |
| PAR (NFB) - nylon fabric on back Surface protection |
Nylon |  |
| PAZ + PAR (NFT + NFB) - fabric on teeth and back Low coefficient of friction and surface protection |
Nylon |  |
The fabric on teeth and back can be combined with all other layers. A complete range of belt surface layers
