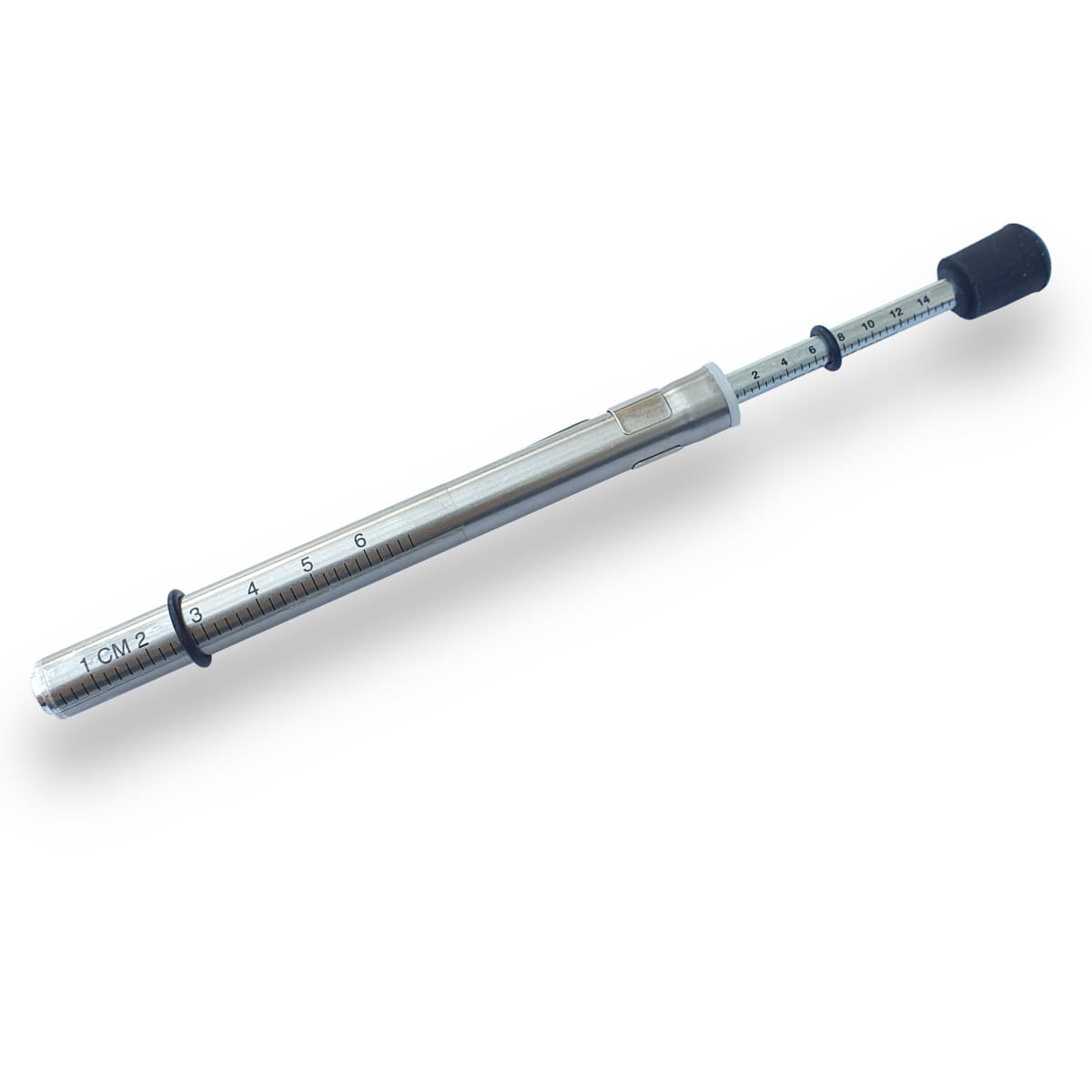

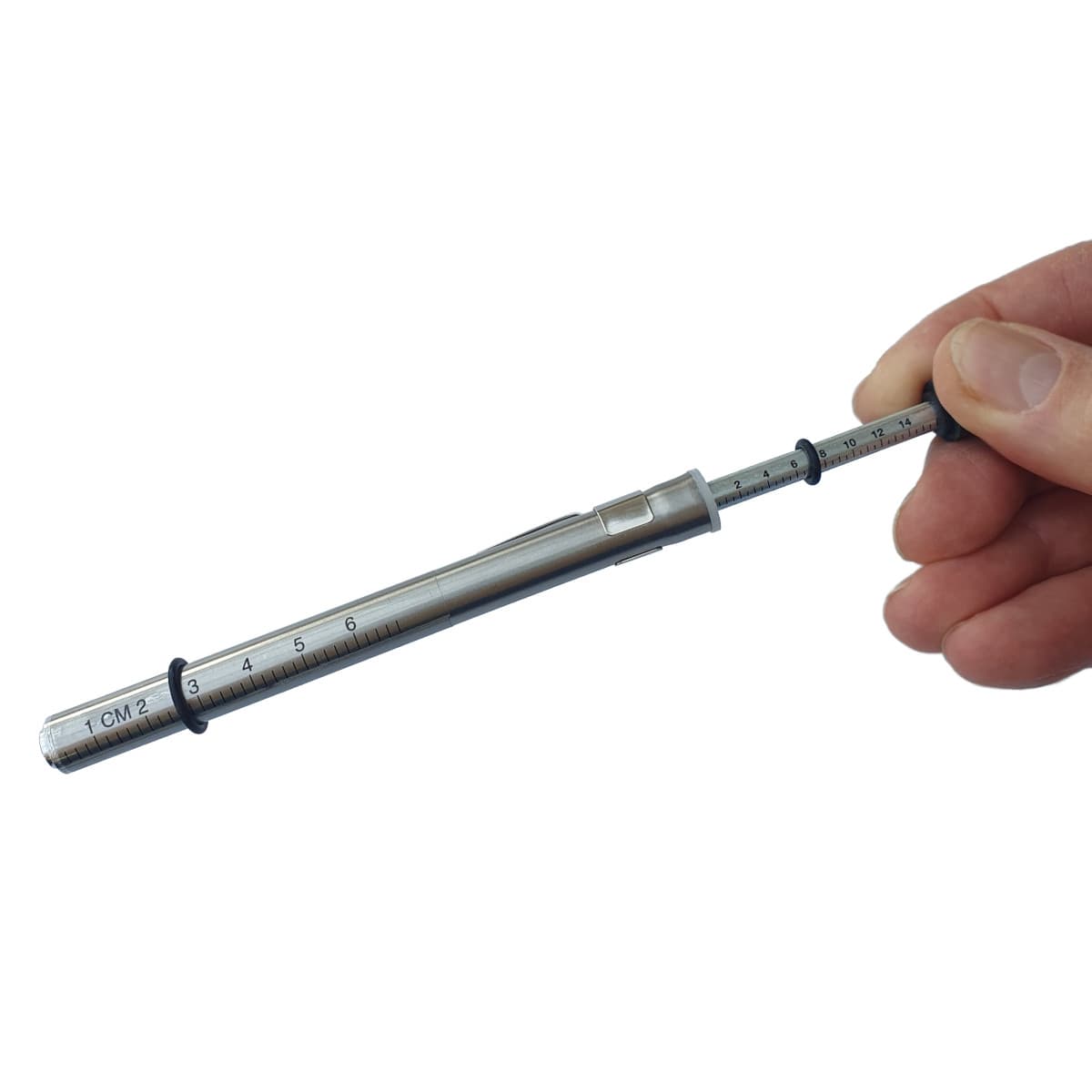

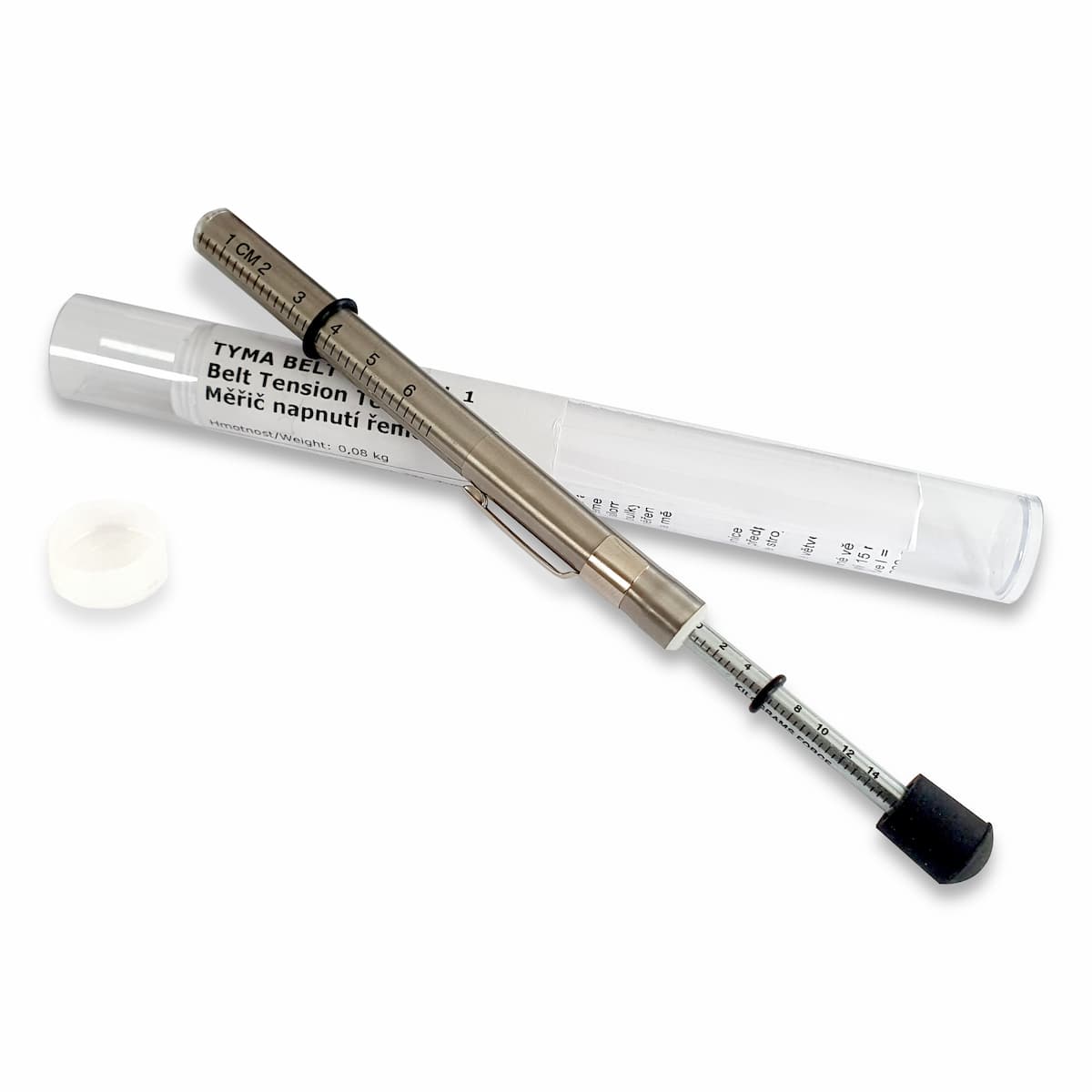

TYMA Belt Control 1 Belt Tension Tester
Measuring Instrument
Price without VAT: 23.54€
Price including VAT: 28.48€ with VAT
Catalogue price excluding VAT:
23.99€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Instrument Parameters
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Instrument Description
Belt tension gauges are mechanical or electronic devices for setting or checking proper belt tension. It is performed at rest with the transmission stopped.
The most accurate setting of the belt pretension is done by setting the correct oscillation frequency of the free span of belt. Some belts can be checked and pre-tensioned by measuring the free span deflection.
Proper preload of belt drives is a prerequisite for trouble-free operation and long service life.
Instrument Fields of Use
Belt pretension gauges are designed to measure pretension during assembly and operation of timing belts, poly-V-belts, V-belts, and flat belts. With these gauges, we can easily and accurately set the static force in the drive belt span with any tensile fiber.
They are used in all industries.
