1360x1.0 T150 - Sleeve (Neoprene)
Flat Belt
Price without VAT: 12,60CZK
Price including VAT: 15,30CZK with VAT
Catalogue price excluding VAT:
12,00CZK
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Parameters
Nominal length, datum length or working length of the belt. It is commonly denoted as Ld or Ld, and sometimes also as Lw or Lw.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation CR.
Description

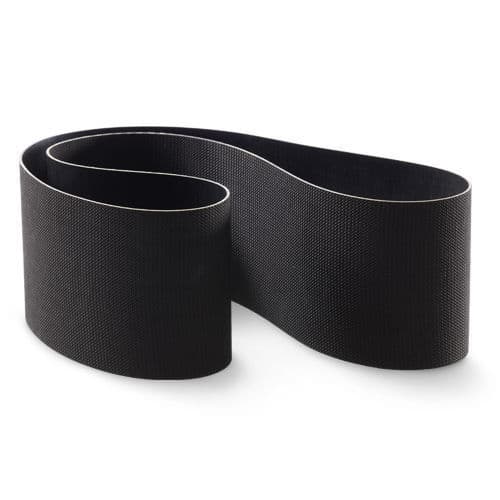

1360x1.0 T150 - Sleeve (Neoprene) are flat drive belts for high speeds and transmissions made without any joint.
The base is made of nylon tensile fabric made exactly to the given length. The fabric is coated with synthetic rubber, polyurethane or silicone.
They are available in various thicknesses and surface variants depending on the type of application.
Construction
- Tensile member
- Bottom cover material
- Top cover material
Fields of Use
Endless T150, Ne, Pu and Si flat belts are designed for drive machines in all industries where a homogeneous belt without any joint must be used.
They are used mainly in machine tools, saws, grinders, packaging machines, printing machines and many other machines and equipment.
Characteristics
- Excellent flexibility, very small pulley diameters
- High coefficient of friction and very high efficiency
- Very low noise
- Transmission of the highest speeds and peripheral speeds up to 80 m/s
- Very precise dimensions, small tolerances
- Possibility to use standardized pulleys according to DIN
Technical Parameters
| T150 Belt Parameter | Value |
|---|---|
| Fabric – top | neoprene |
| Fabric – bottom | neoprene |
| Colour | black |
| Breaking force | 3000 N |
| Elongation for recommended preload | 0.7 % |
| Recommended preload | 400 N per 1 cm width |
| Coefficient of friction | 0.5 / 0.6 |
| Minimum pulley diameter Dp min | 15 mm |
| Temperature | −30 až +110 °C |
| Antistatic | yes |
| Length range | 200 to 3850 mm |
| Width | 3 to 330 mm |
| Thickness | 0,9 mm +/−0,15 |
For technical parameters of other special types please see the catalogue sheet.
Documents for Download
Dimensions and Parameters of Endless Flat Belts
TYMA CZ Data Sheets
Czech and English (PDF 185.13 kB)
