Flat Elevator Belt

Price for you :

Price without VAT: 13.27

Price including VAT: 16.05 with VAT

Catalogue price excluding VAT:

The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.

At supplier, we usually ship within a month Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Special pricing available for orders over 100 m: Inquire a Bulk Quote

Belt Parameters

Profile: POLYFLAT Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): - Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: ContiTech
Weight (kg): 0.071
Length Ld (mm): 1000,00
Width (mm): 15,00
Material: Polyurethane with Steel Tensile Fiber Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ST.

Belt Description

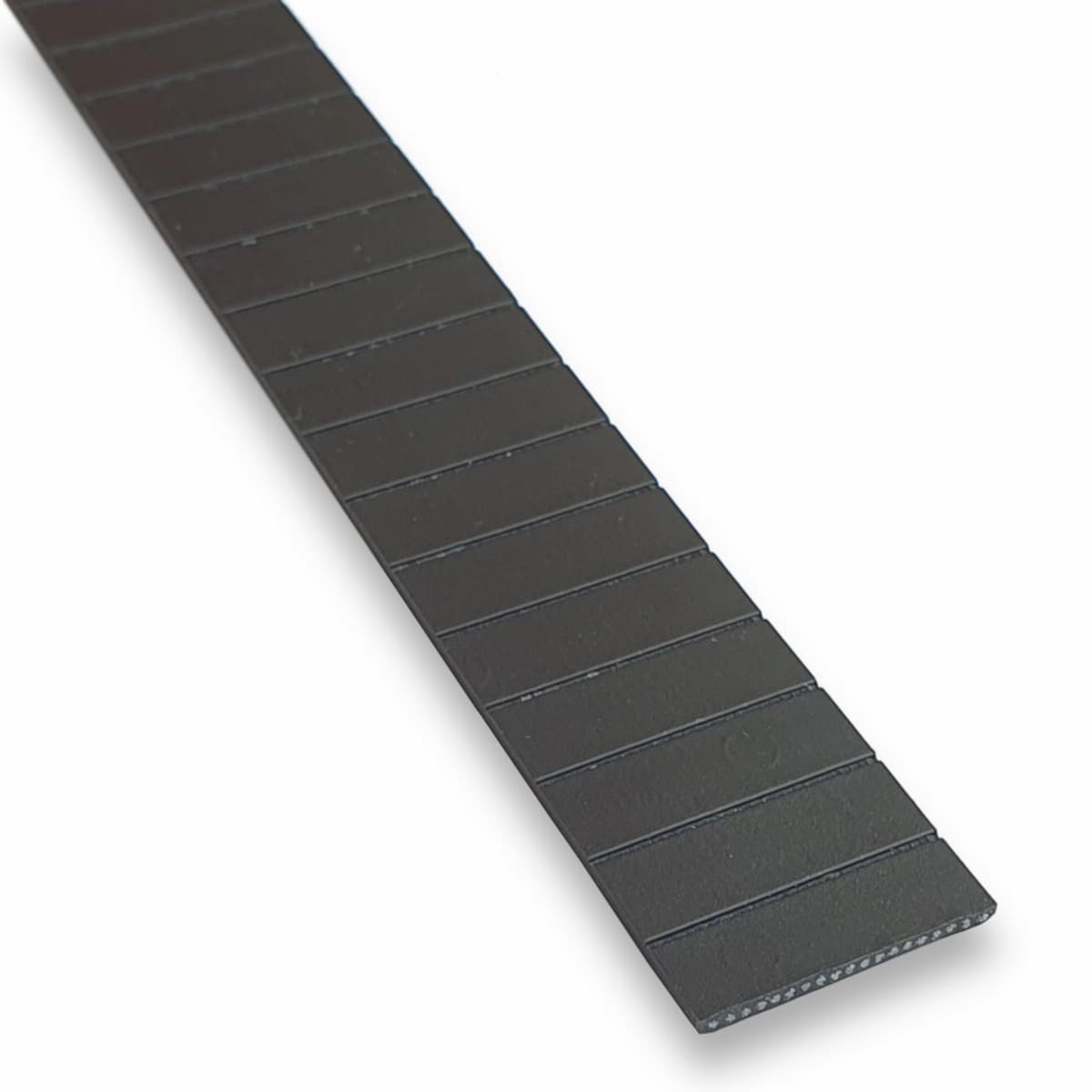

F15 HP CONTI POLYFLAT is an open-ended polyurethane flat belt. It is made of thermoplastic polyurethane and reinforced by steel tension member.

This belt is manufactured in standard open design with straight transverse grooves on the bottom side. The grooves reach up to the tensile cords. The back of the belt is flat and smooth without grooves.

CONTI POLYFLAT belts have very high tensile strength, excellent flexibility, and wear resistance. They can be used with significantly smaller pulley diameters compared to steel ropes. Smaller pulleys make it possible to use smaller geared motors and create compact drive configurations with low inertia. This reduces production costs and energy consumption.

The belts are available in whole rolls or in lengths according to customer requirements. For orders over 100 m, we offer a customized price quote: inquire for a bulk quote.

Belt Construction

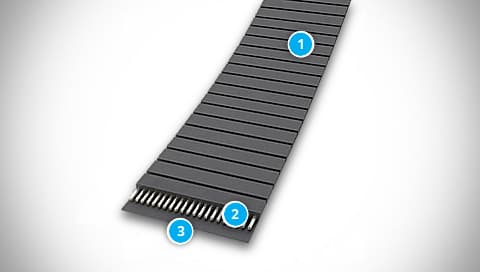

Structure of CONTI POLYFLAT Belt with Straight Transverse Grooves

  1. Polyurethane open bottom side with straight transverse grooves
  2. Steel tension member
  3. Polyurethane flat and smooth backing

Belt Fields of Use

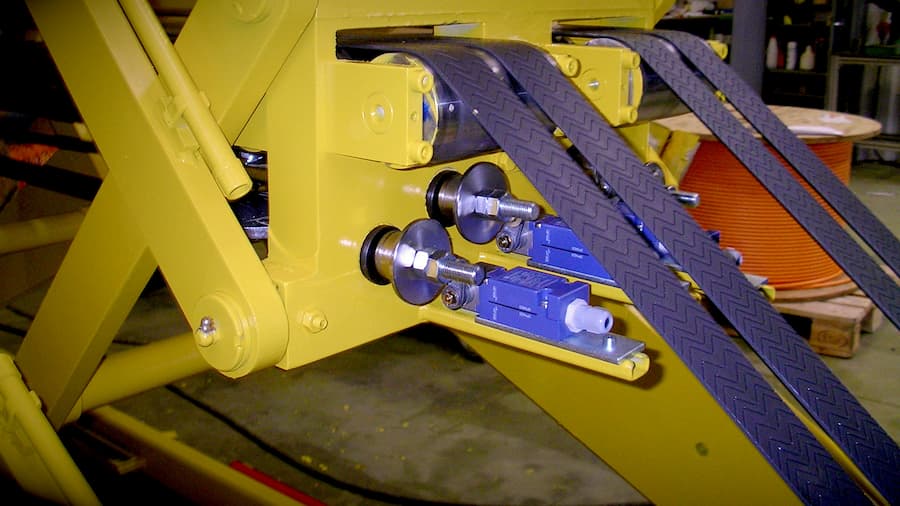

CONTI POLYFLAT Flat Elevator Belts in Use

Thanks to advancements in technology, new procedures, and smart solutions, the application range of flat belts is increasingly expanding to lifting applications.

CONTI POLYFLAT flat belts are designed for lifting systems in industrial applications.

They are particularly used with elevators, lifting systems, forklifts, car wash installations, scissor-lift tables or automatic door and gate systems.

Belt Characteristics

  • High transmission power and long service life
  • Oil-, grease-, fuel-, benzene-, UV- and ozone-resistant; suitable for tropical climates
  • Wear-resistant and maintenance free
  • Temperature range from −30 °C to +80 °C (please request technical advice for temperatures below −10 °C and above +50 °C)
  • Low in PAHs (PAK) – category 1 according to AfPS-GS-2014-01-PAK

Documents for Download

Dimensions and Parameters of Flat Elevator Belts, Ropes and Wedge Sockets - Preview

Dimensions and Parameters of Flat Elevator Belts, Ropes and Wedge Sockets

TYMA CZ Data Sheets

Czech and English (PDF 242.31 kB)



ContiTech Product Overview

English and German (PDF 1.63 MB)
