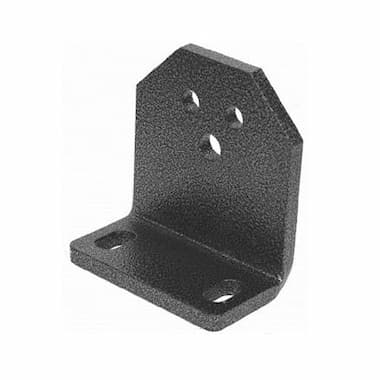

SB 20 - for RE/FE 20, for M8 Screw

Support for Mounting of Tensioners

Price for you :

Price without VAT: 13.08

Price including VAT: 15.83 with VAT

Catalogue price excluding VAT:

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

Support Parameters

Profile: -
No. of grooves/teeth: z=55 No. of grooves/teeth
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
Bore (mm): M8
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.170
Pitch diameter Dw (mm): 58,00
Width (mm): 32,00 Width (mm)
Face width.
Material: Steel Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.

Support Description

SB 20 - for RE/FE 20, for M8 Screw are standard L-shaped mounting elements that are used to attach an automatic tensioner for tensioning of chains or belts to the machine.

Support Construction

SB Support Construction

  1. L-shaped support
  2. Holes for screwing to the tensioner
  3. Holes for screwing to the machine

Support Material


Documents for Download

Dimensions and Parameters of RE and FE Tighteners Elements and SB Supports - Preview

Dimensions and Parameters of RE and FE Tighteners Elements and SB Supports

TYMA CZ Data Sheets

Czech and English (PDF 410.26 kB)

Sprockets and Plate Wheels - Preview

Sprockets and Plate Wheels

TYMA CZ Catalogue

Czech and English (PDF 3.77 MB)
